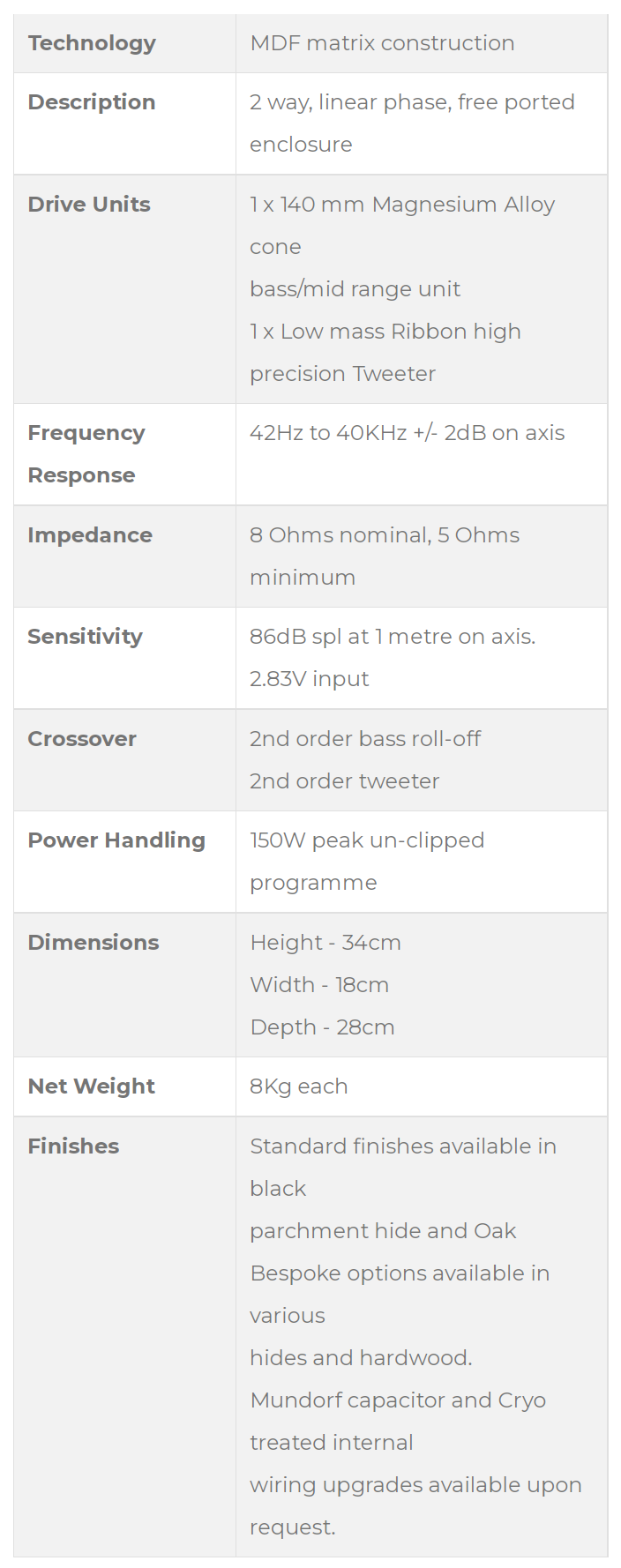

Description 2 way, linear phase, free ported enclosure
Drive Units 1 x 140 mm Magnesium Alloy cone bass/mid range unit, 1 x Low mass Ribbon high precision Tweeter
Frequency Response 42 Hz to 40 KHz +/- 2 dB on axis
Impedance 8 Ω nominal, 5 Ω minimum
Sensitivity 86 dB spl at 1 metre on axis. 2.83 V input
Crossover 2nd order bass roll-off, 2nd order tweeter
Power Handling 150 W peak un-clipped programme
Dimensions Height – 34 cm, Width – 18 cm, Depth – 28 cm
Net Weight 8 Kg each
Finishes Standard finishes available in black parchment
hide and Oak Bespoke options available in
various hides and hardwood. Mundorf capacitor
and Cryo treated internal wiring upgrades
available upon request.
