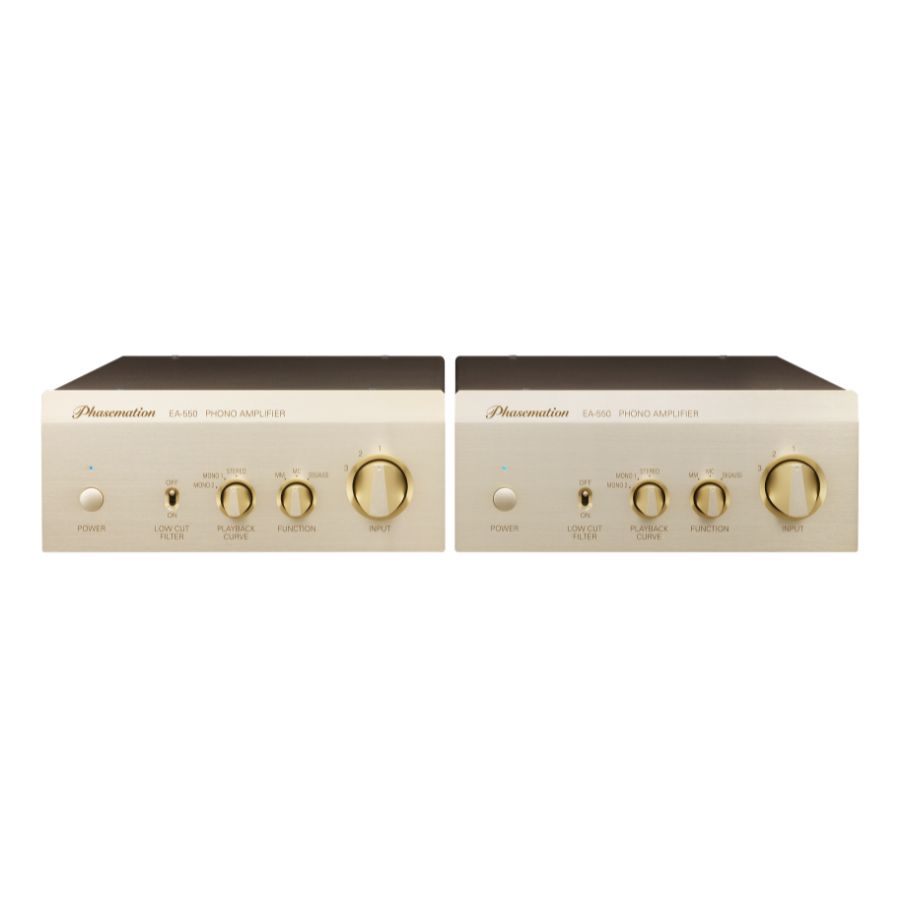

Phono Stage EA-550

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

SKU EA-550
Product PHONO STAGE
Form V-I/I-V conversion type all-stage symmetric non-feedback equalizing amplifier
Input Sensitivity 2.5 mV (MM) / 0.13 mV (MC)
Suitable Cartridge Output Impedance 47 k Ω or less (MM) / 1.5 to 40 Ω (MC)
Gain 38 dB (MM) / 64 dB (MC)
Input Equivalent S/N Ratio –120 dbV (MM) / –140 dBV (MC)
Rated Output Voltage 200 mV (1kHz)
Rear Curve Tolerance ± 0.5 dB (20 Hz – 20 kHz)
Power Consumption 10 W (100 VAC 50 – 60 Hz) for each Ch
Dimensions 211 mm (W) × 93 mm (H) × 360 mm (D)
Weight 5.5 kg for each Ch
