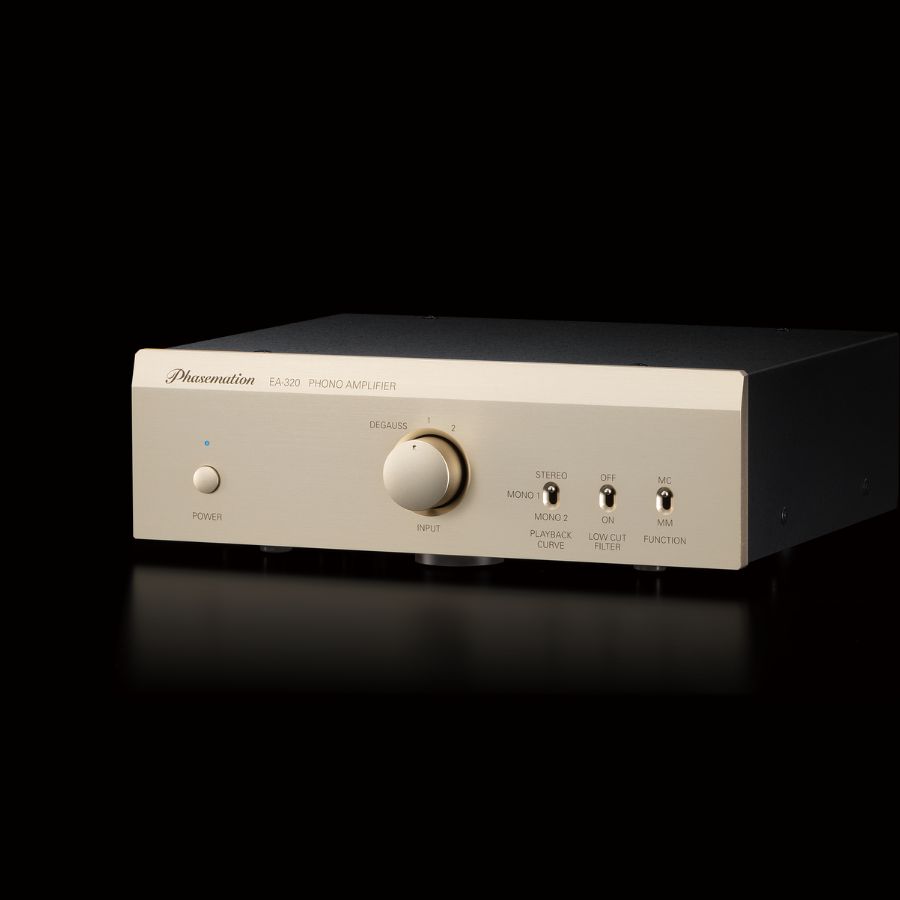

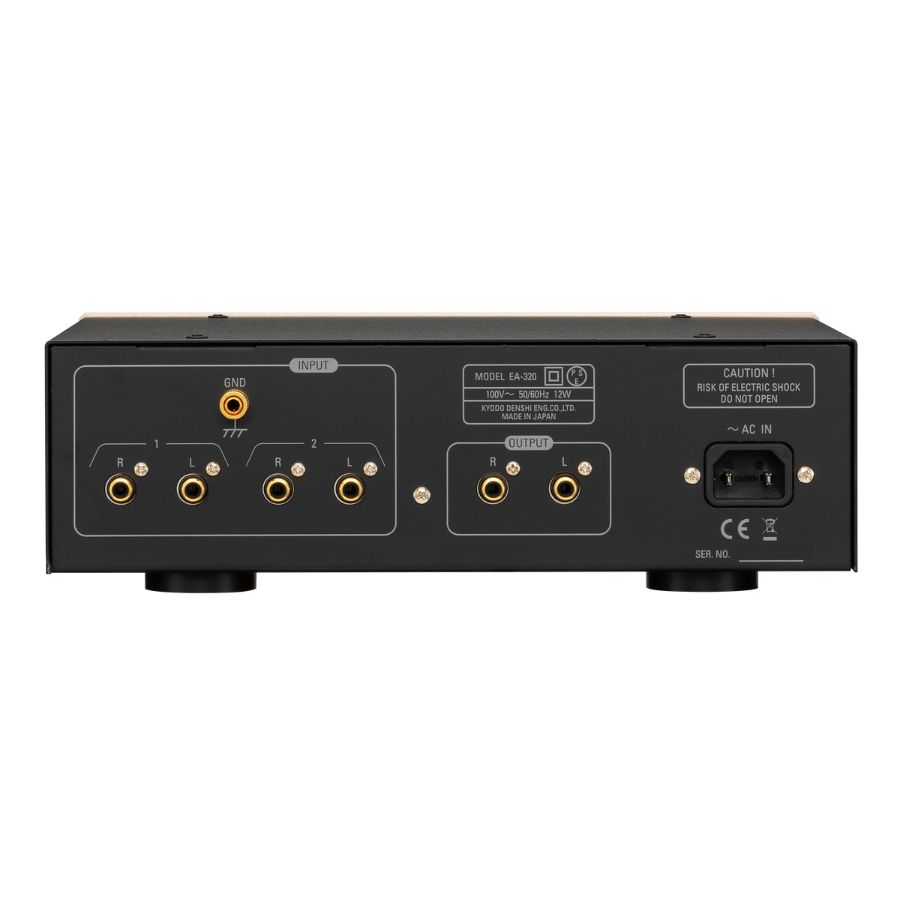

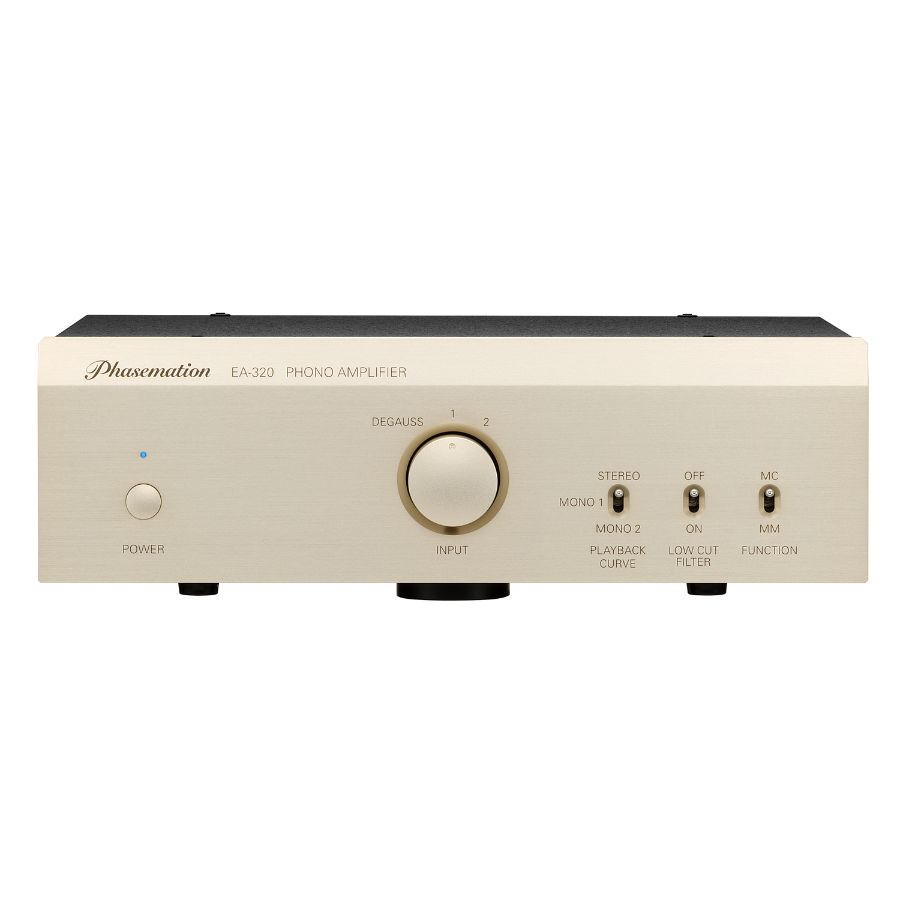

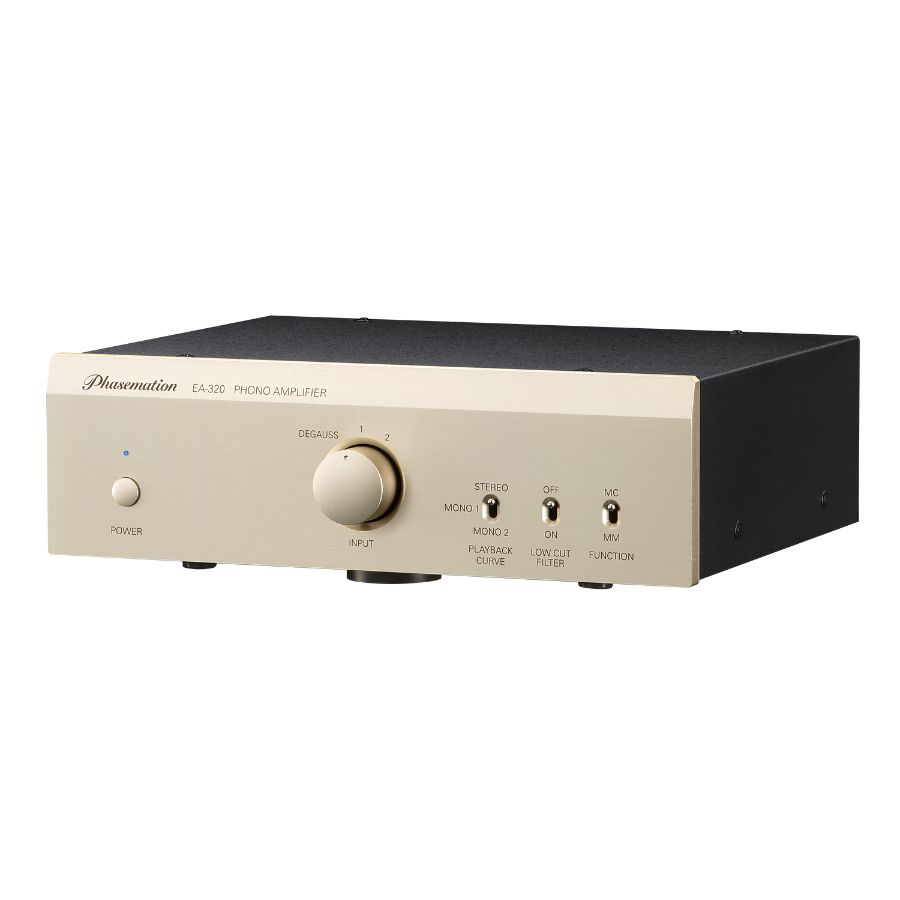

Phono Stage EA-320

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

SKU EA-320
Product PHONO STAGE

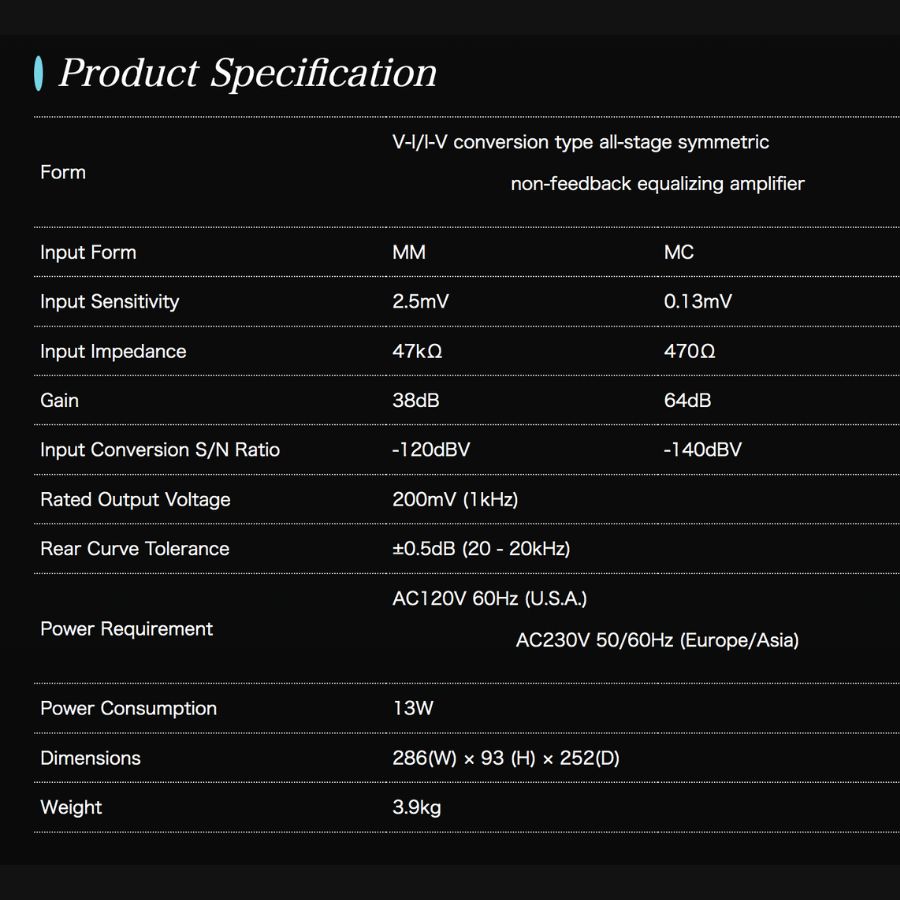

Form V-I/I-V conversion type all-stage symmetric
non-feedback equalizing amplifier
Input Sensitivity 2.5 mV (MM) / 0.13 mV (MC)
Input Impedance 47 k Ω (MM) / 470 Ω (MC)
Gain 38 dB (MM) / 64 dB (MC)
Input Equivalent S/N Ratio –120 dbV (MM) / –140 dBV (MC)
Rated Output Voltage 200 mV (1kHz)
Rear Curve Deviation ± 0.5 dB (20 Hz – 20 kHz)
Power Requirement AC120 V 60 Hz (U.S.A.) AC230V 50/60 Hz
(Europe/Asia)
Power Consumption 13 W
Dimensions 286 mm (W) × 93 mm (H) × 252 mm (D)
Weight 3.9 kg
