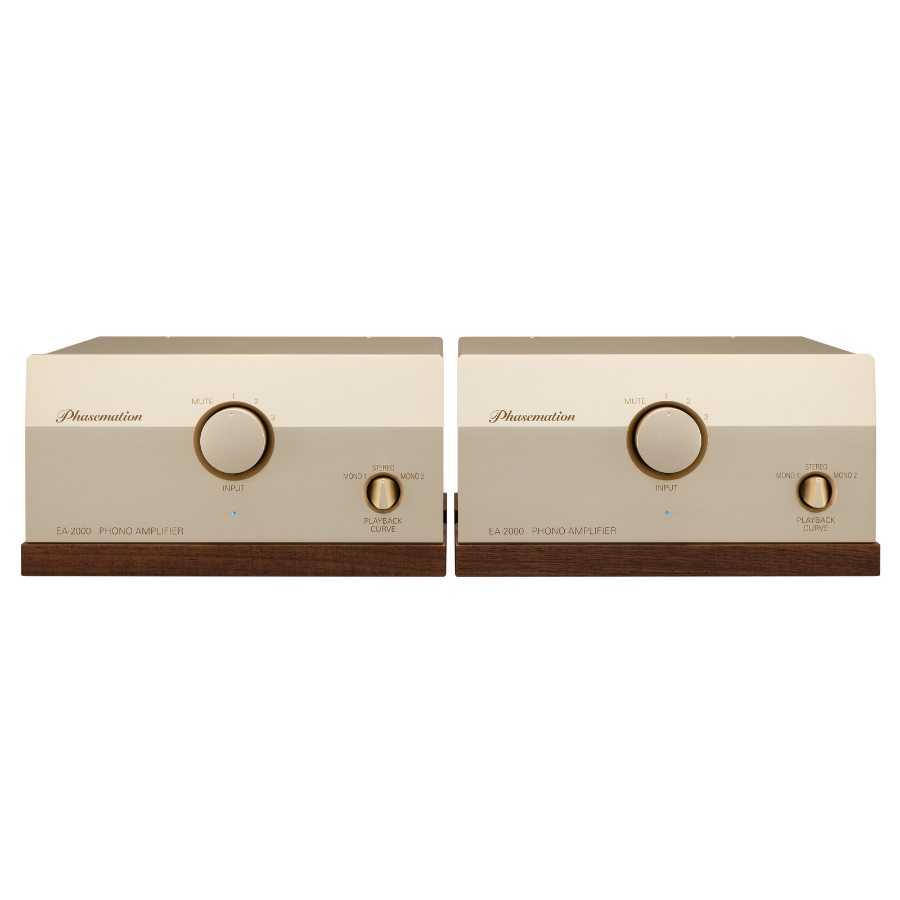

Phono Stage EA-2000

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

SKU EA-2000
Product PHONO STAGE
Form Tube Type LCR Non-Feedback Phono Amplifier
Input Sensitivity 2 mV (MM) / 0.1 mV (MC)
Suitable Cartridge Output Impedance 47 k Ω or less (MM) / 1.5 to 40 Ω (MC)
Gain 40 dB (MM) / 66 dB (MC)
Input Equivalent S/N Ratio –120 dbV (MM) / –140 dBV (MC)
Rated Output Voltage 200 mV (1kHz)
Rear Curve Tolerance ± 0.5 dB (20 Hz – 20 kHz)
Power Consumption 35 W(100 VAC 50 – 60 Hz) for each ch
Dimensions T：214 mm（W）× 118 mm（H）× 265 mm（D）×2
EQ：214 mm（W）× 118 mm（H）× 368 mm（D）×2

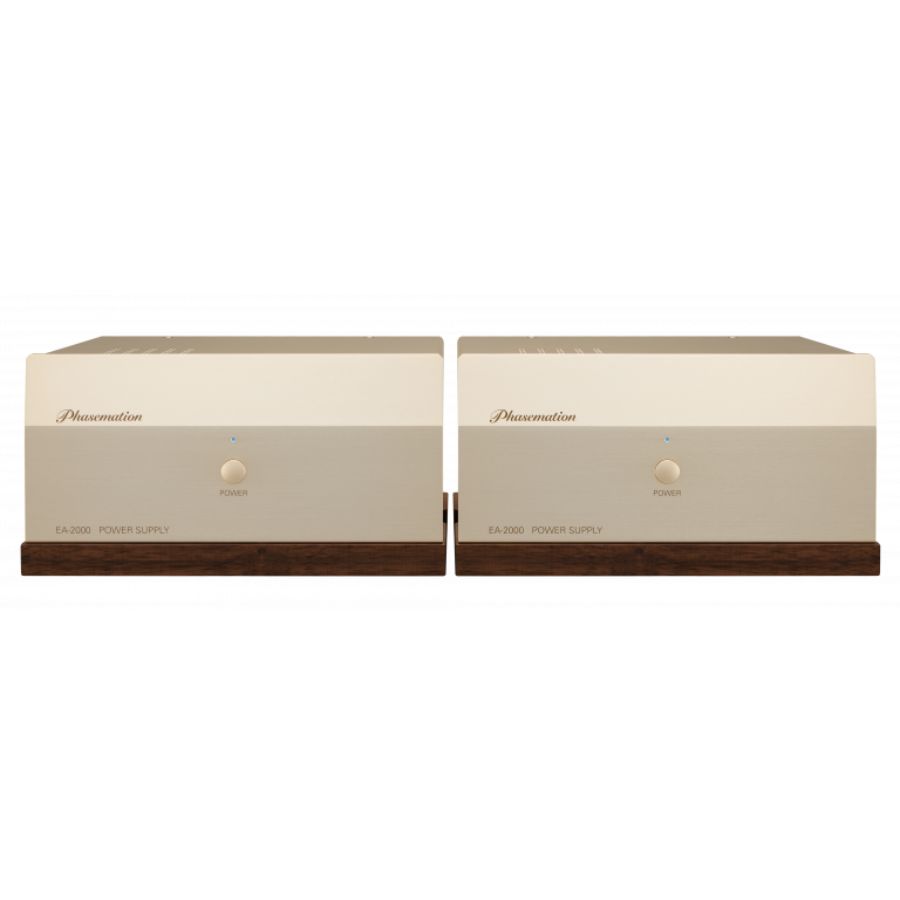

PS：214 mm（W）× 118 mm（H）× 352 mm（D）×2
Weight Transformer 4.5 kg / Amplifier: 6.1 kg / Power Supply: 7.8 kg / x2
