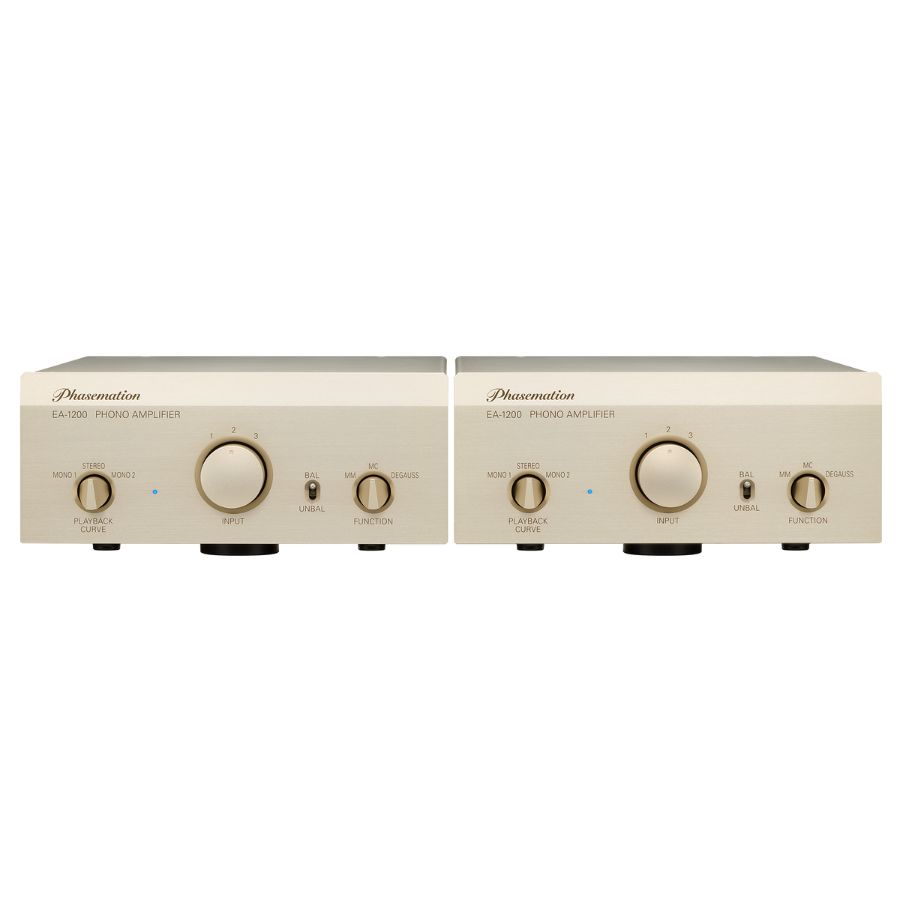

Phono Stage EA-1200

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

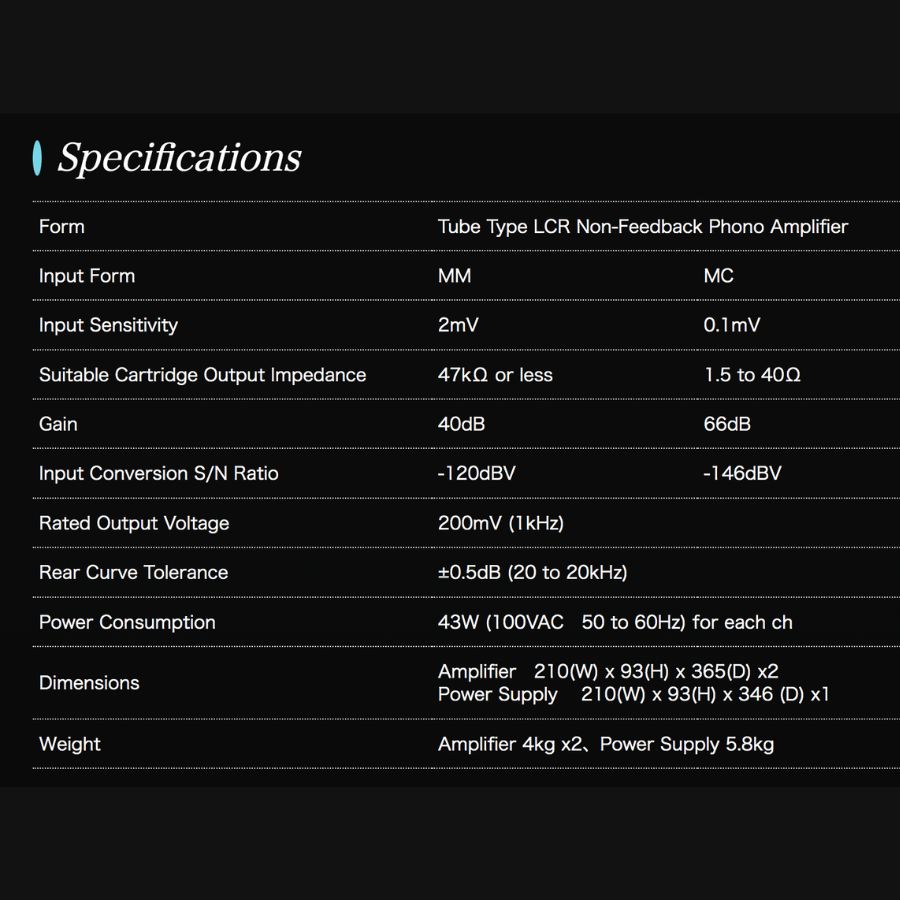

SKU EA-1200
Product PHONO STAGE
Form Tube Type LCR Non-Feedback Phono Amplifier
Input Sensitivity 2 mV (MM) / 0.1 mV (MC)
Suitable Cartridge Output Impedance 47 k Ω or less (MM) / 1.5 to 40 Ω (MC)
Gain 40 dB (MM) / 66 dB (MC)
Input Equivalent S/N Ratio –120 dbV (MM) / –146 dBV (MC)
Rated Output Voltage 200 mV (1kHz)
Rear Curve Tolerance ± 0.5 dB (20 Hz – 20 kHz)
Power Consumption 43 W (100 VAC 50 to 60 Hz) for each ch
Dimensions Amplifier 210 mm (W) x 93 mm (H) x 365 mm (D) x2

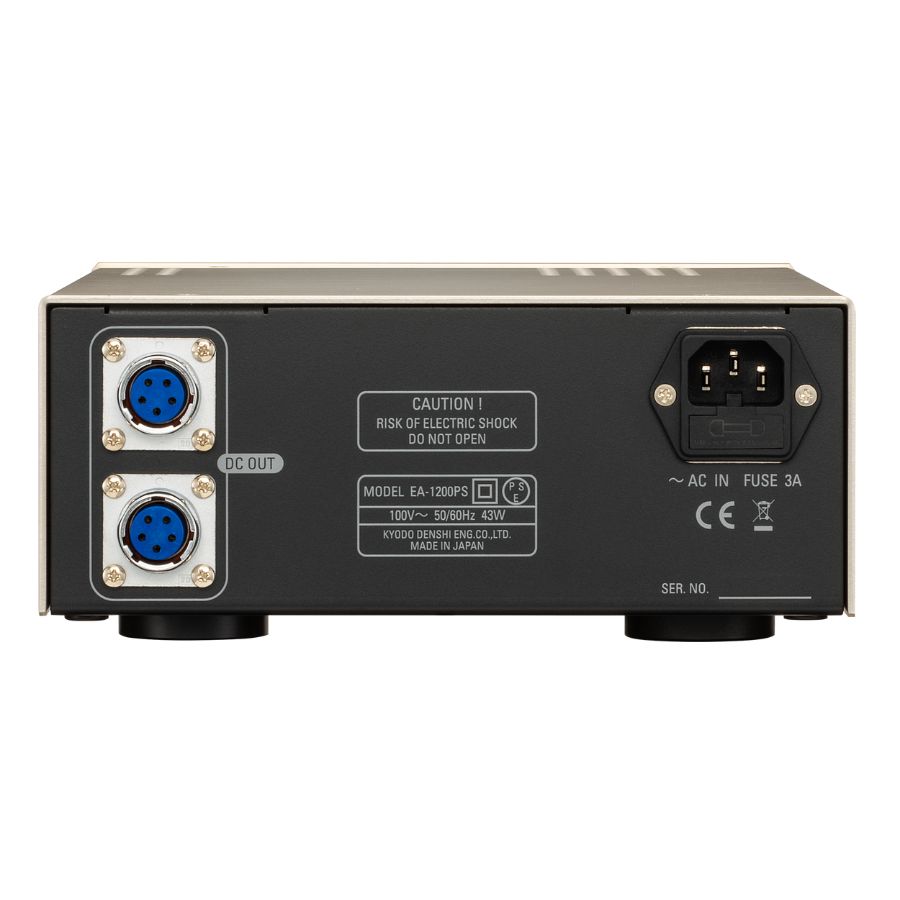

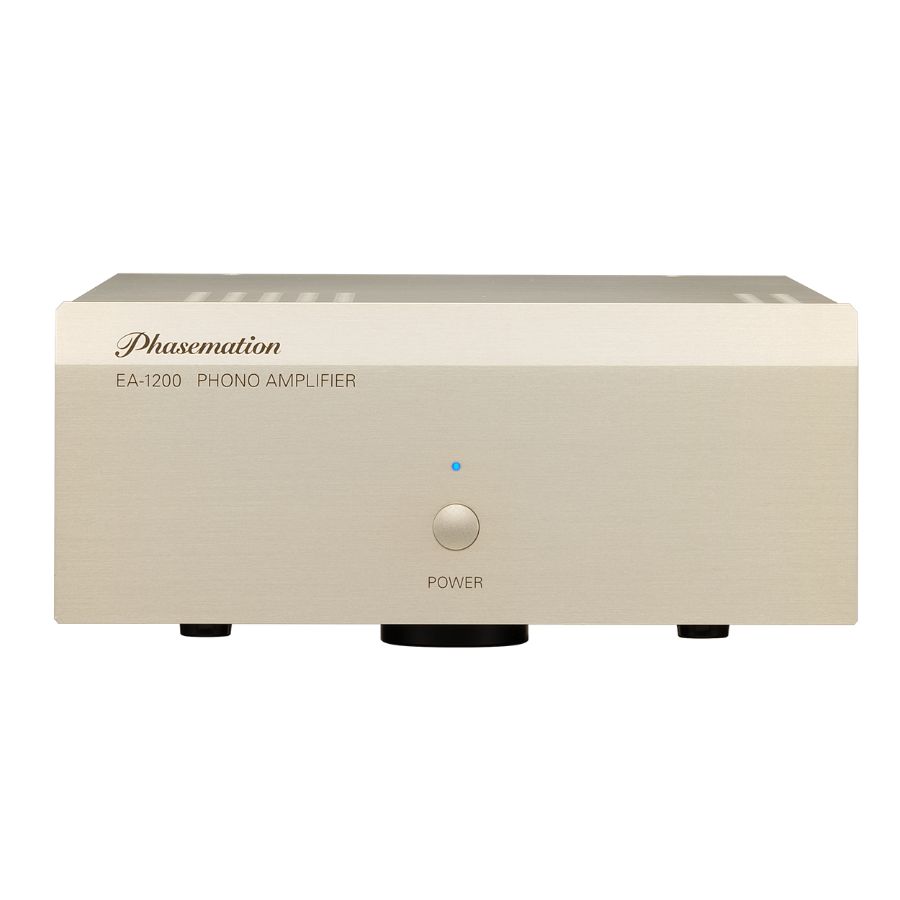

Power Supply 210 mm (W) x 93 mm (H) x 346 mm (D) x1
Weight Amplifier 4 kg x2 Power Supply 5.8 kg
