Benchmark THD+N <-165dB (Resample to PCM 44.1K – 384K)***
Benchmark THD+N <-155dB (Resample to DSD128 – DSD512)***
Benchmark THD+N <-150dB (Resample to DSD64)***

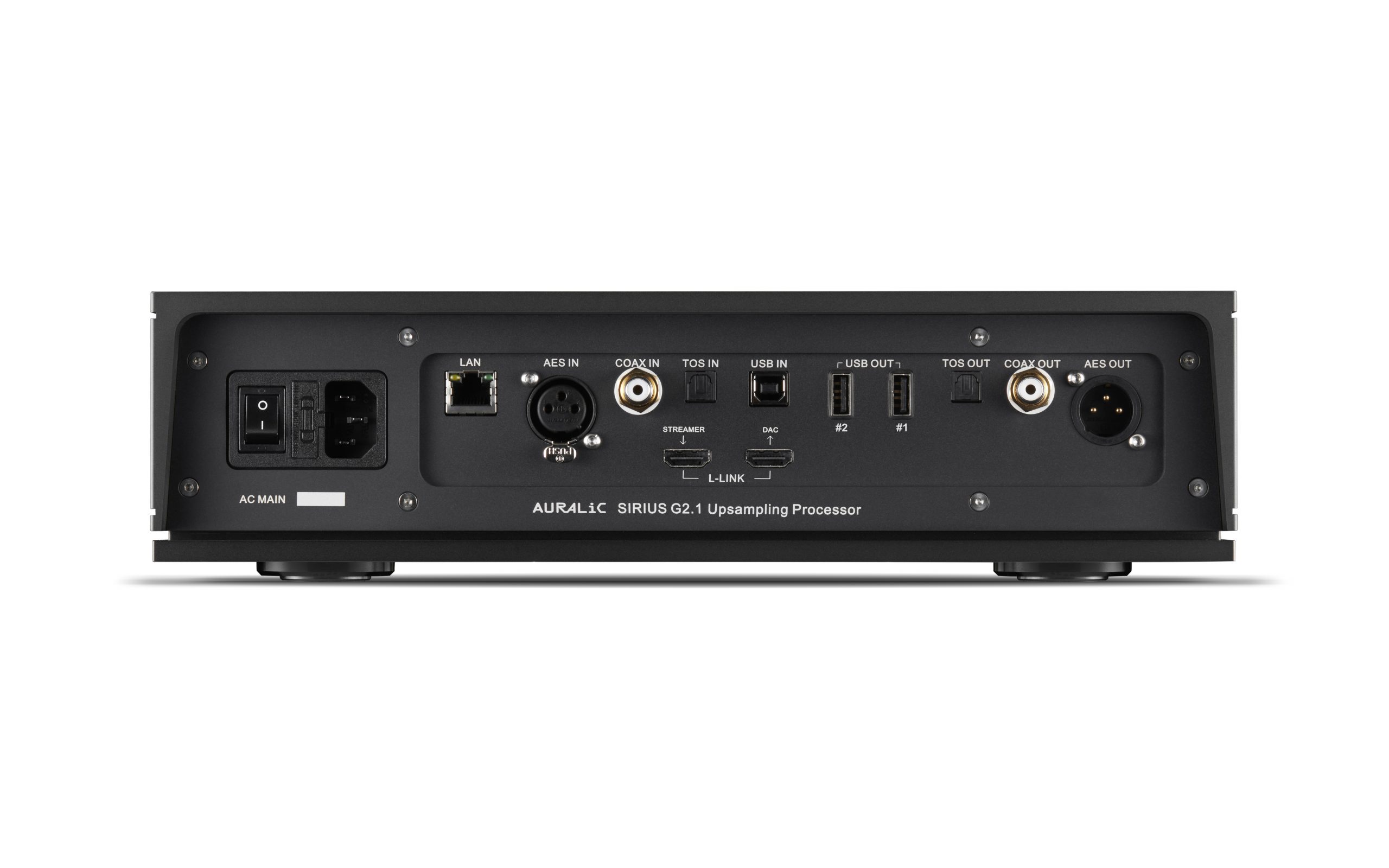

Audio Inputs Lightning Link Up to 384K/32bit, DSD512
Audio Inputs USB Up to 384K/32bit, DSD512*
Audio Inputs AES/EBU Up to 192K/24bit, DSD64 via DoP
Audio Inputs Coaxial Up to 192K/24bit, DSD64 via DoP
Audio Inputs TOSLINK Up to 192K/24bit, DSD64 via DoP
Audio Outputs Lightning Link Up to 384K/32bit, DSD512
Audio Outputs USB Up to 384K/32bit, DSD512**
Audio Outputs AES/EBU Up to 192K/24bit, DSD64 via DoP
Audio Outputs Coaxial Up to 192K/24bit, DSD64 via DoP
Audio Outputs TOSLINK Up to 192K/24bit, DSD64 via DoP
Processing Features Signal Reclock and Jitter Removal****, PCM and DSD Resampler, 8-Band Parametric Equalizer, Speaker Placement Compensation, High Precision Digital Volume Control
Processing Platform AURALiC Tesla G1 for general hardware control, AURALiC Proteus G2 for music signal processing

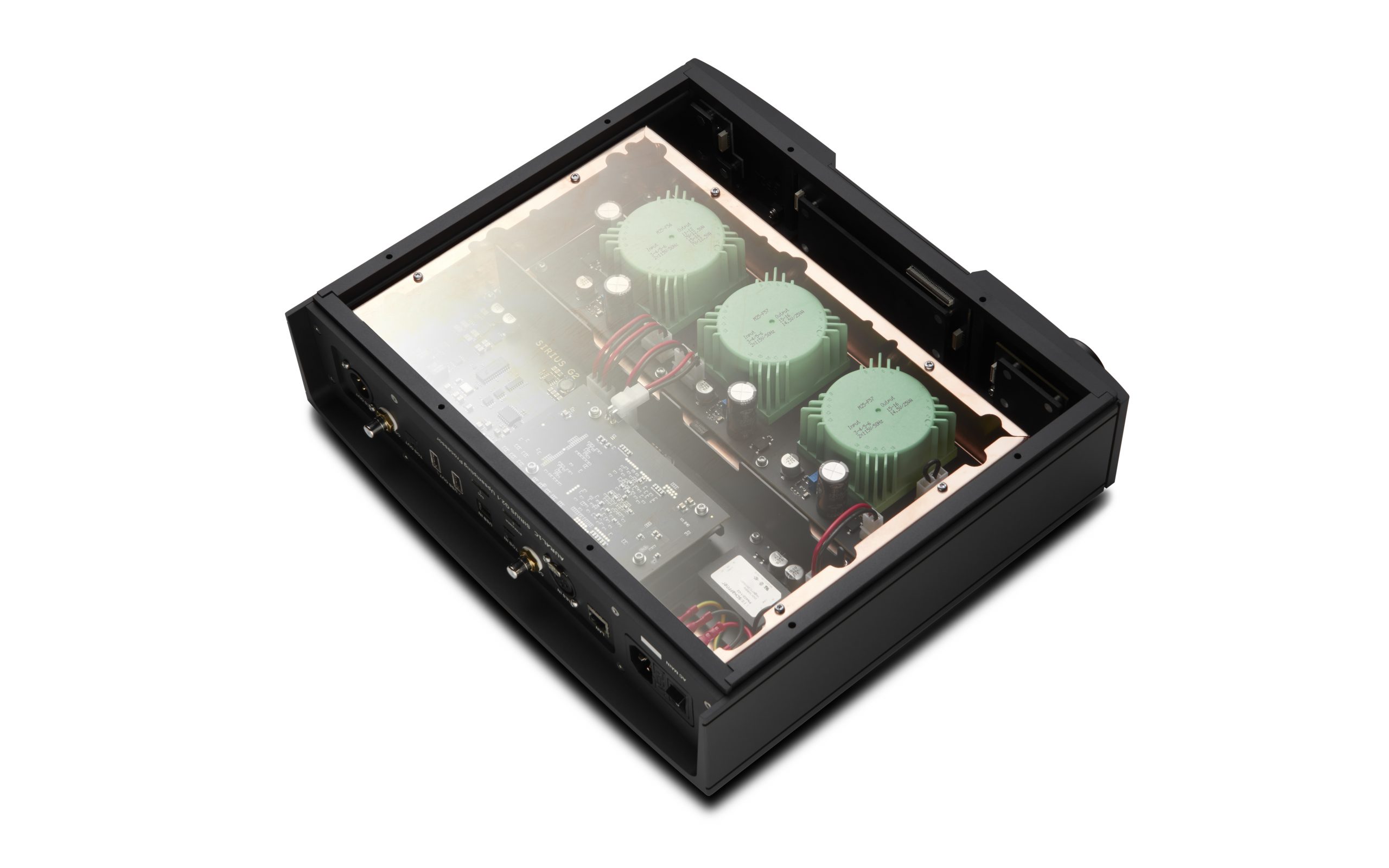

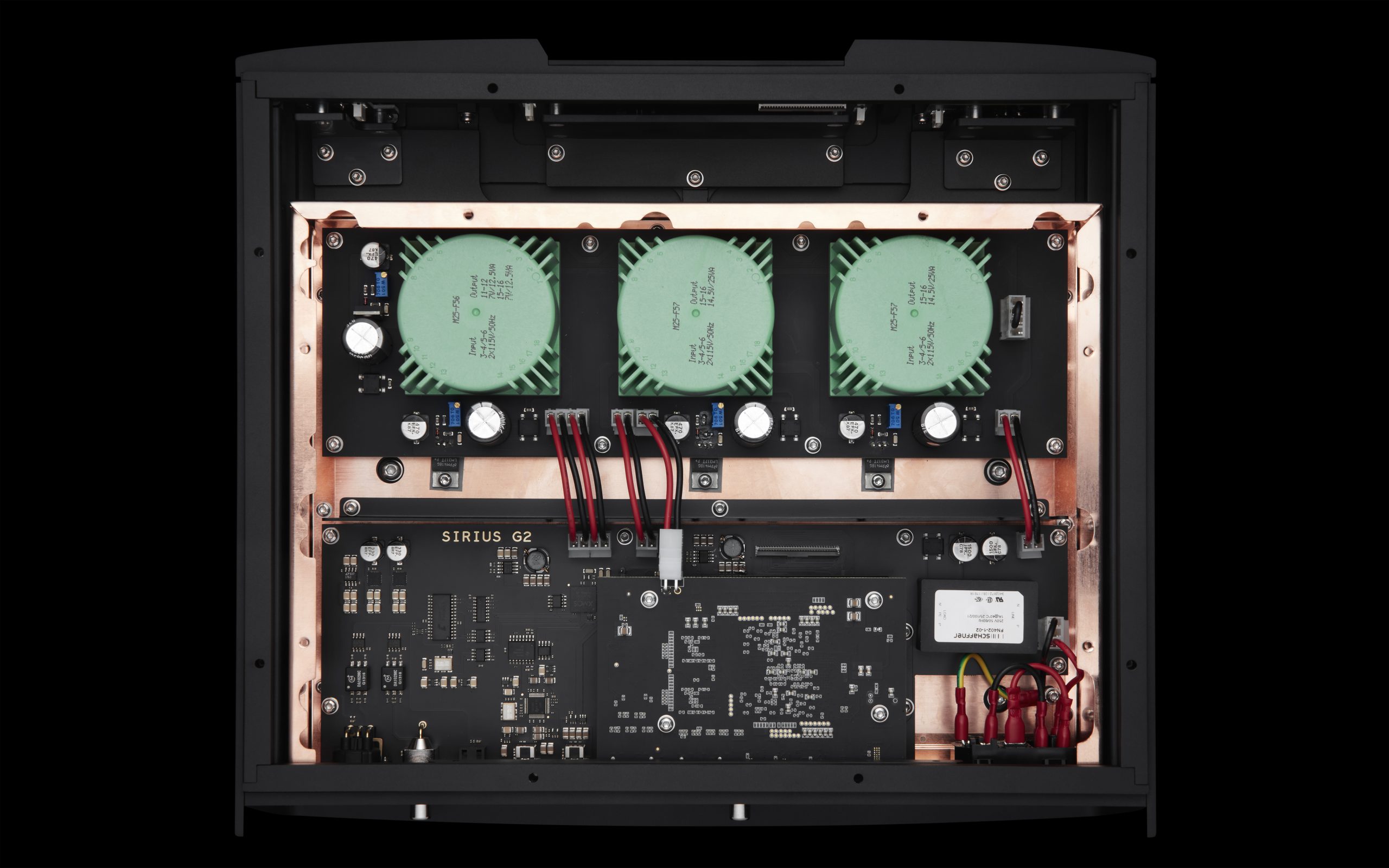

Power Supply Triple-Channel Purer-Power internal linear power supply, 10uV low noise design for audio circuits
Internal Clock Triple Femto Clocks for Digital Outputs, USB Output and Proteus G2
Noise Elimination
Dual Galvanic Isolation for digital and USB audio outputs, Unity Chassis II with copper EMI shieling enclosure
