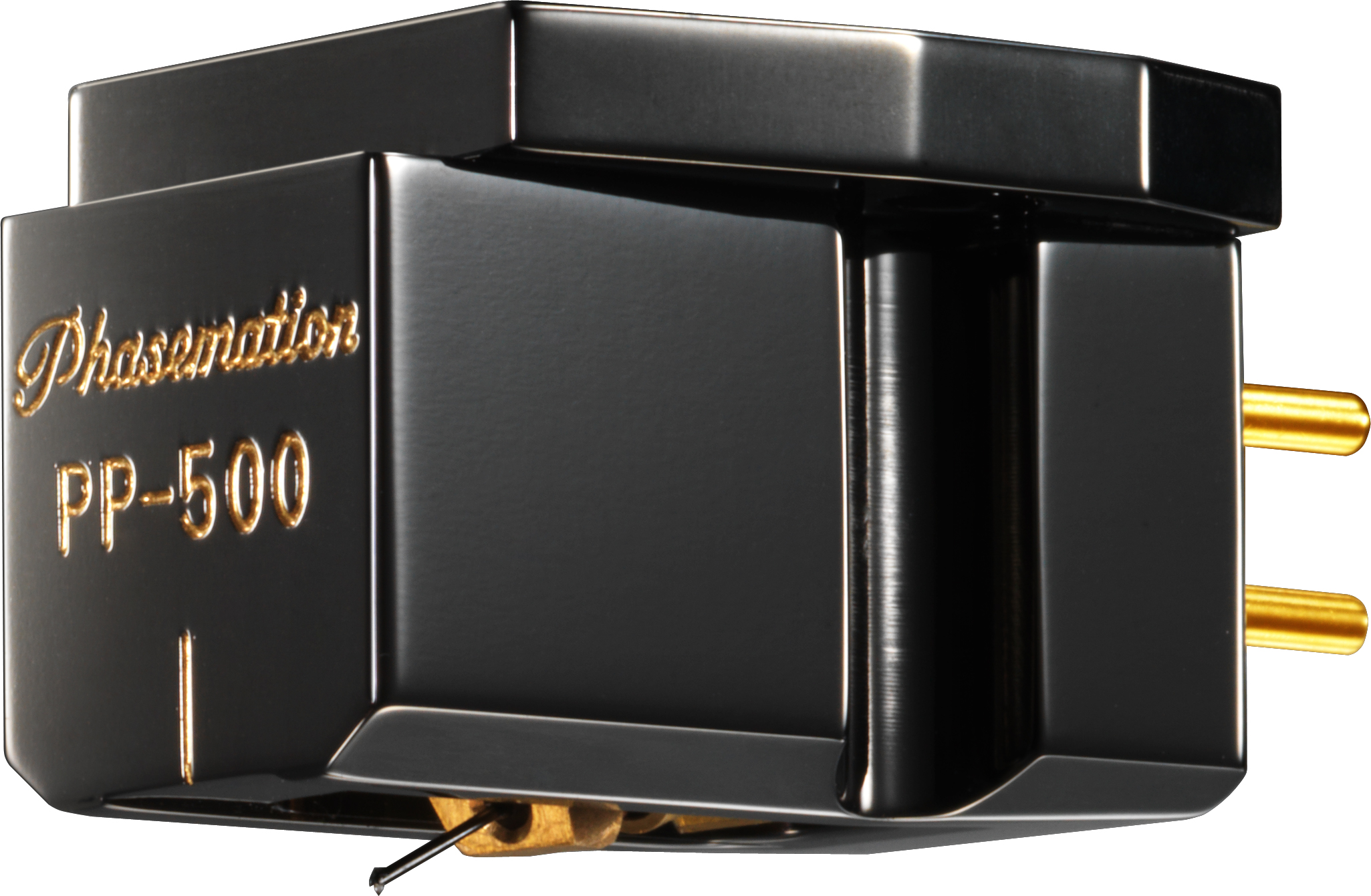

SKU PP-500
Product MC CARTRIDGES (Low Output)

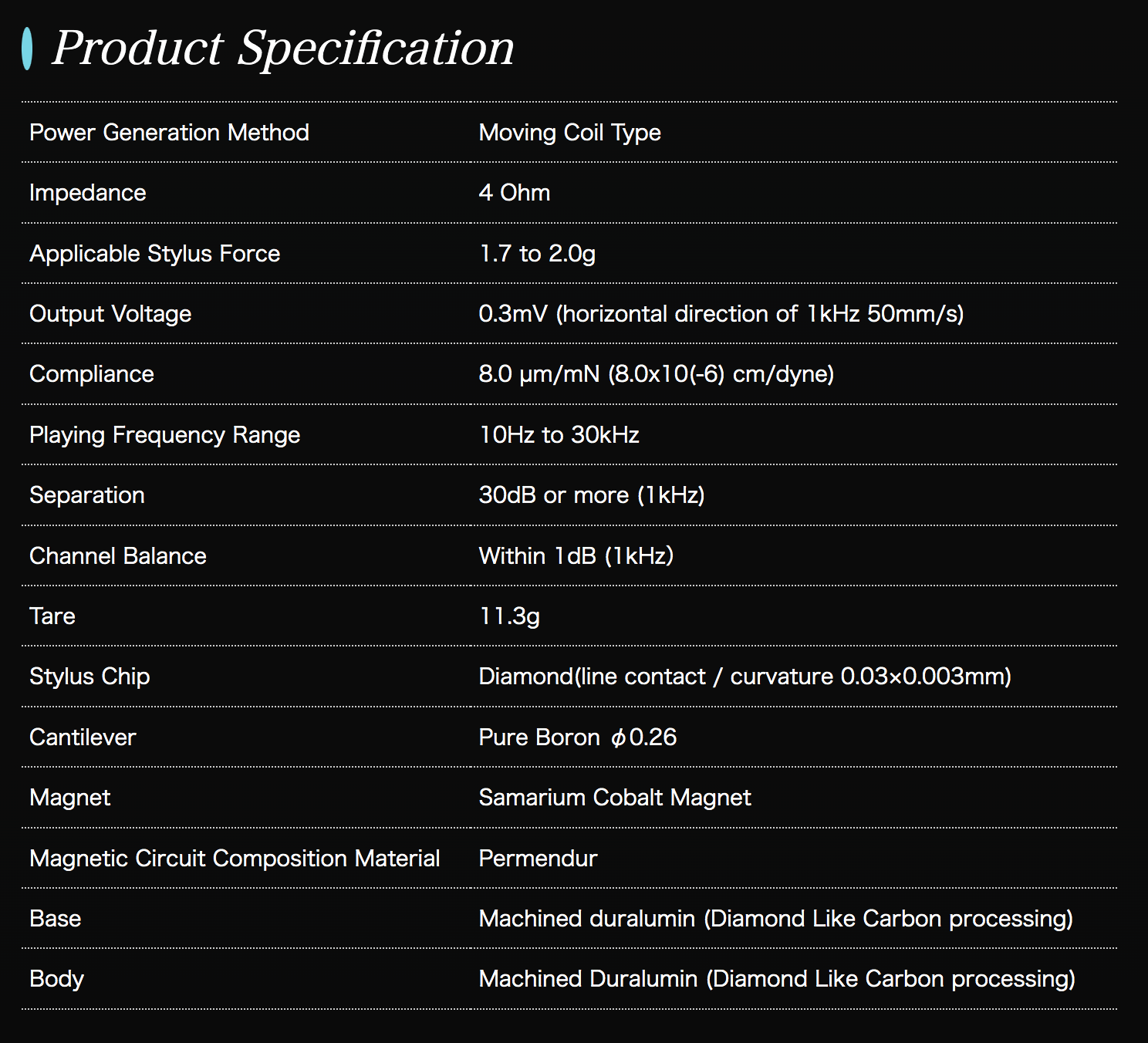

Power Generation Method Moving Coil Type
Impedance 4 Ω
Applicable Stylus Force 1.7 to 2.0 g
Output Voltage 0.3 mV (horizontal direction of 1 kHz 50 mm/s)
Compliance 8.0 µm/mN (8.0×10(-6) cm/dyne)
Playing Frequency Range 10 Hz to 30 kHz
Separation 30 dB or more (1 kHz)
Channel Balance Within 1dB (1 kHz）
Tare 11.3 g
Stylus Chip Diamond (line contact / curvature 0.03 × 0.003 mm)
Cantilever Pure Boron φ 0.26
Magnet Samarium Cobalt Magnet
Magnetic Circuit Composition Material Permendur
Base Machined duralumin (Diamond Like Carbon processing)
Body Machined Duralumin (Diamond Like Carbon processing)
