CARTRIDGES PP-2000 – Yahgan

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

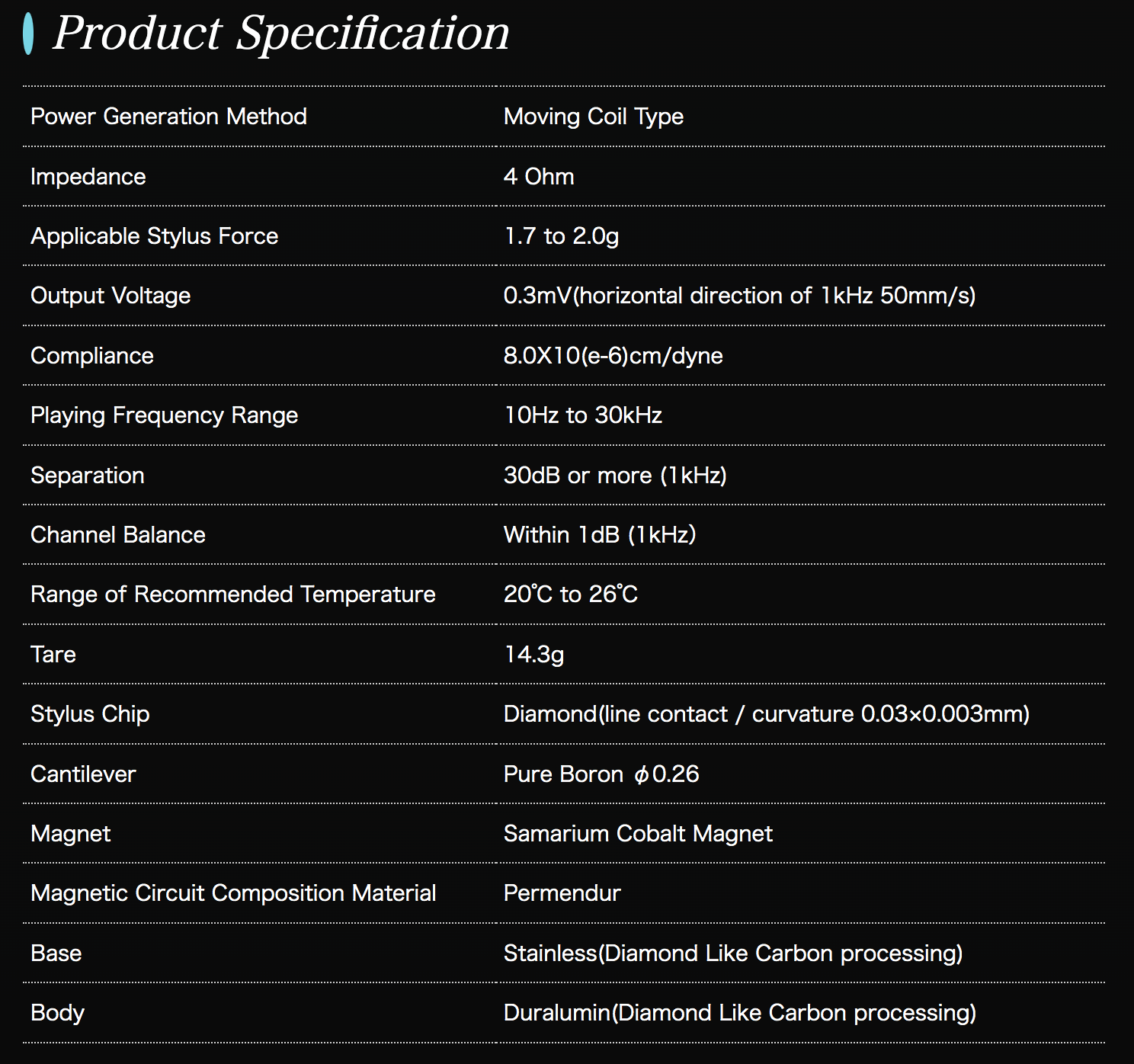

SKU PP-2000
Product MC CARTRIDGES (Low Output)
Power Generation Method Moving Coil Type
Impedance 4 Ω
Applicable Stylus Force 1.7 to 2.0 g
Output Voltage 0.3 mV (horizontal direction of 1 kHz 50 mm/s)
Compliance 8.0X10 (e-6) cm/dyne
Playing Frequency Range 10 Hz to 30 kHz
Separation 30 dB or more (1 kHz)
Channel Balance Within 1 dB (1 kHz)
Range of Recommended Temperature 20˚C to 26˚C
Tare 14.3 g
Stylus Chip Diamond (line contact / curvature 0.03 × 0.003 mm)
Cantilever Pure Boron φ 0.26
Magnet Samarium Cobalt Magnet
Magnetic Circuit Composition Material Permendur
Base Stainless (Diamond Like Carbon processing)
Body Duralumin (Diamond Like Carbon processing)
