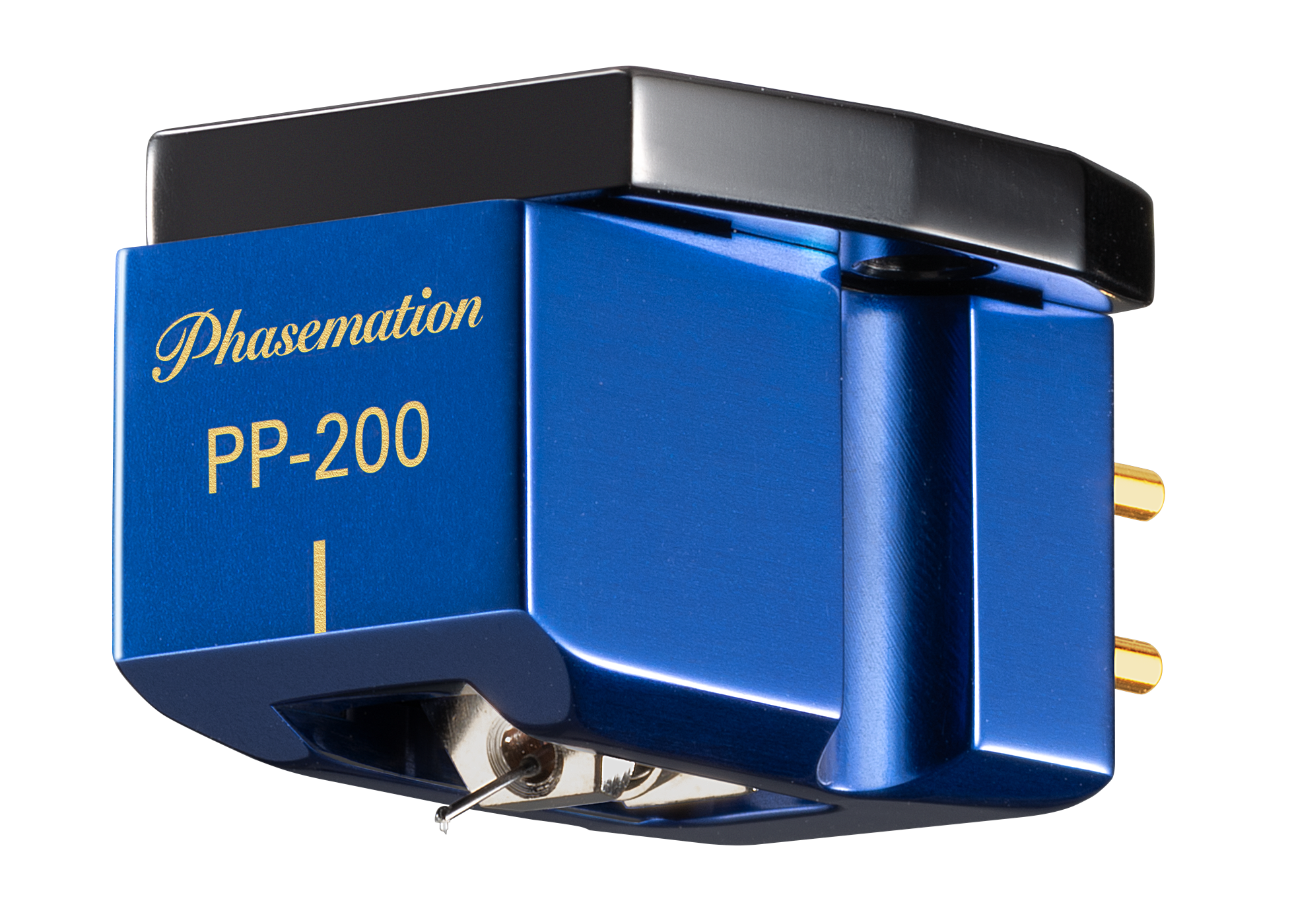

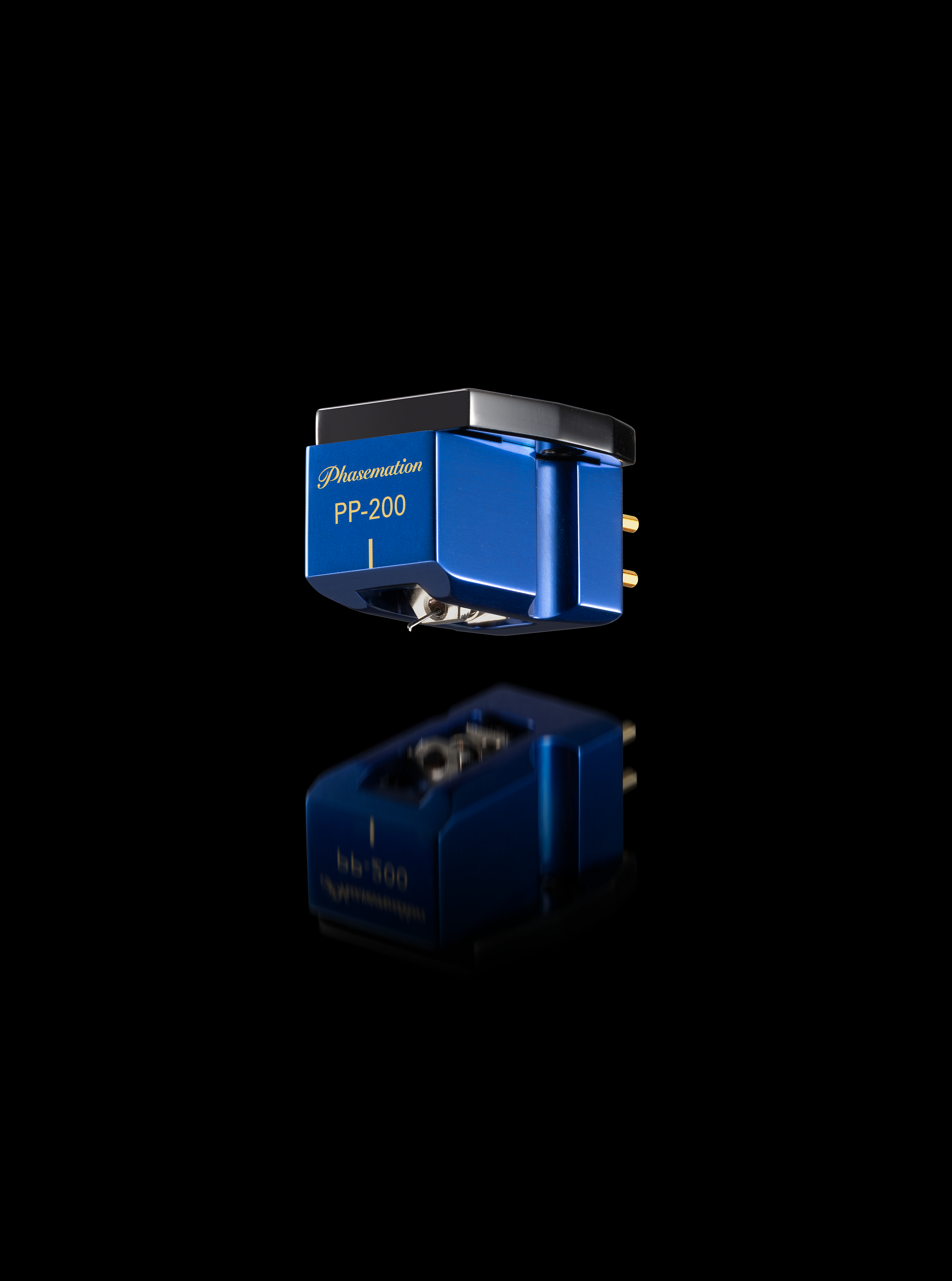

CARTRIDGES PP-200 – Yahgan

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

SKU PP-200
Product MC CARTRIDGES (Low Output)

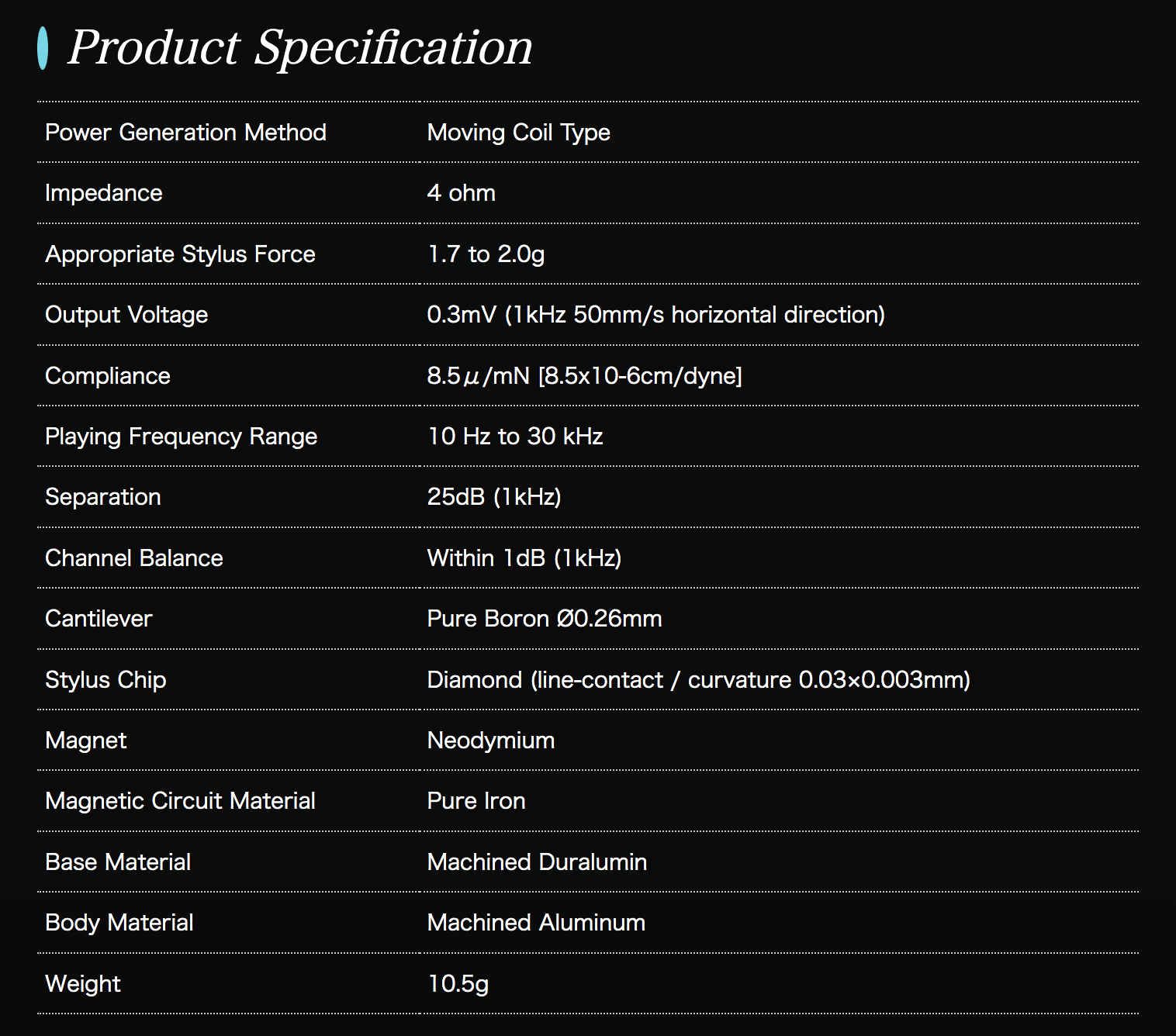

Power Generation Method Moving Coil Type
Impedance 4 Ω
Appropriate Stylus Force 1.7 to 2.0 g
Output Voltage 0.3 mV (1 kHz 50 mm/s horizontal direction)
Compliance 8.5 μ/mN [8.5×10-6cm/dyne]
Playing Frequency Range 10 Hz to 30 kHz
Separation 25 dB (1 kHz)
Channel Balance Within 1 dB (1 kHz)
Cantilever Pure Boron Ø0.26 mm
Stylus Chip Diamond (line-contact / curvature 0.03 × 0.003 mm)
Magnet Neodymium
Magnetic Circuit Material Pure Iron
Base Material Machined Duralumin
Body Material Machined Aluminum
Weight 10.5 g
