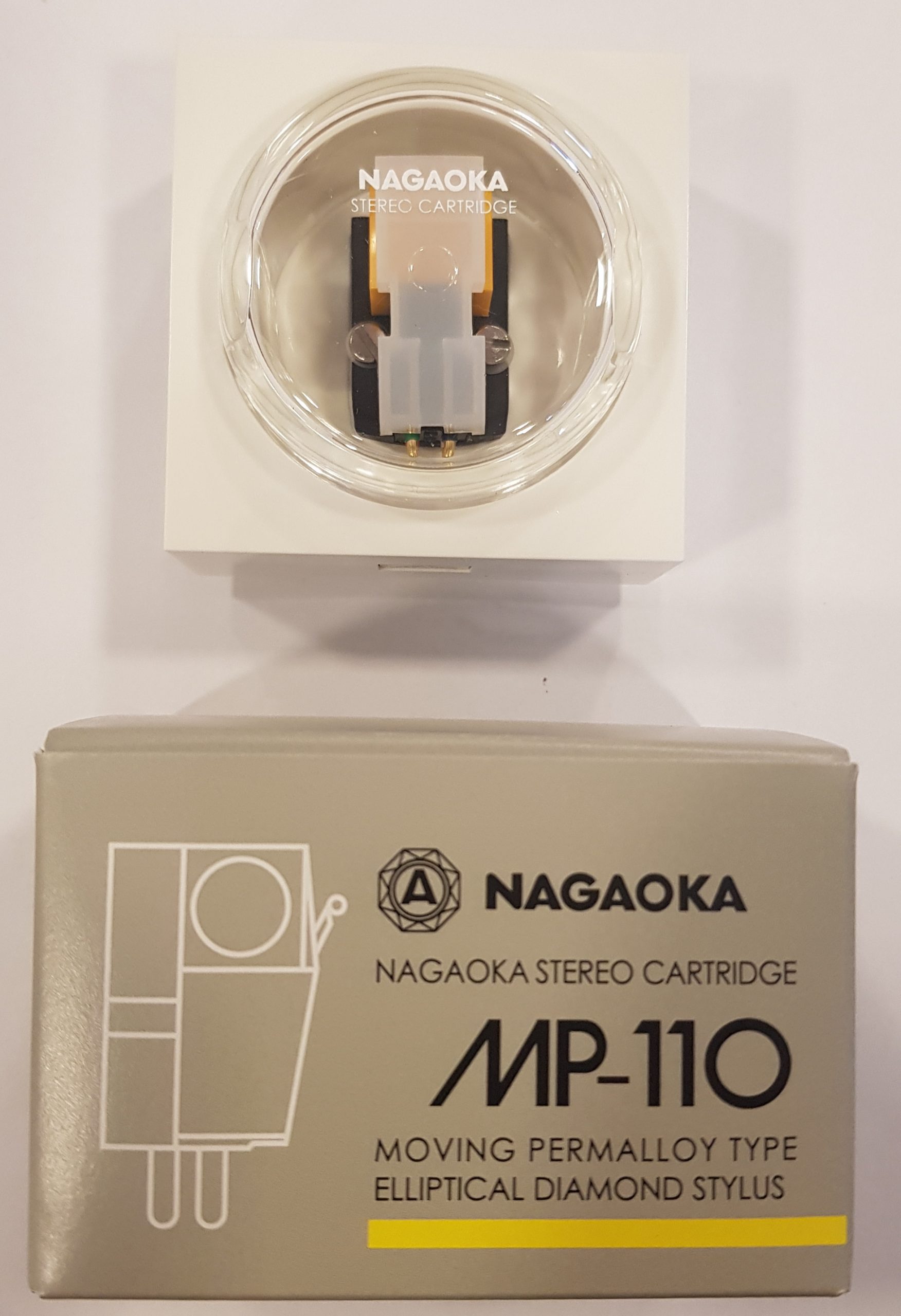

Cartridges MP-110

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

SKU MP-110
Product MM Cartridges
Type Moving magnet (permalloy)
Cantilever Aluminum alloy
Stylus Type Superfine polished elliptical bonded diamond with 0.4 x 0.7 mil radii
Weight 6.5 g
Output Voltage @ 1 kHz, 5cm/sec 5 mV
Frequency Response 20 Hz – 20 kHz
Channel Balance @ 1kHz > 1.5 dB
Channel Separation @ 1kHz > 23 dB
Recommended Loading 47 k Ω
Dynamic Compliance 6.0 x 10-6 cm / dyne
Static Compliance 18 x 10-6 cm / dyne
Tracking Force Range 1.5 g – 2.0 g
Break-in Period 30 hours
Stylus Replacement Nagaoka JN-P110
