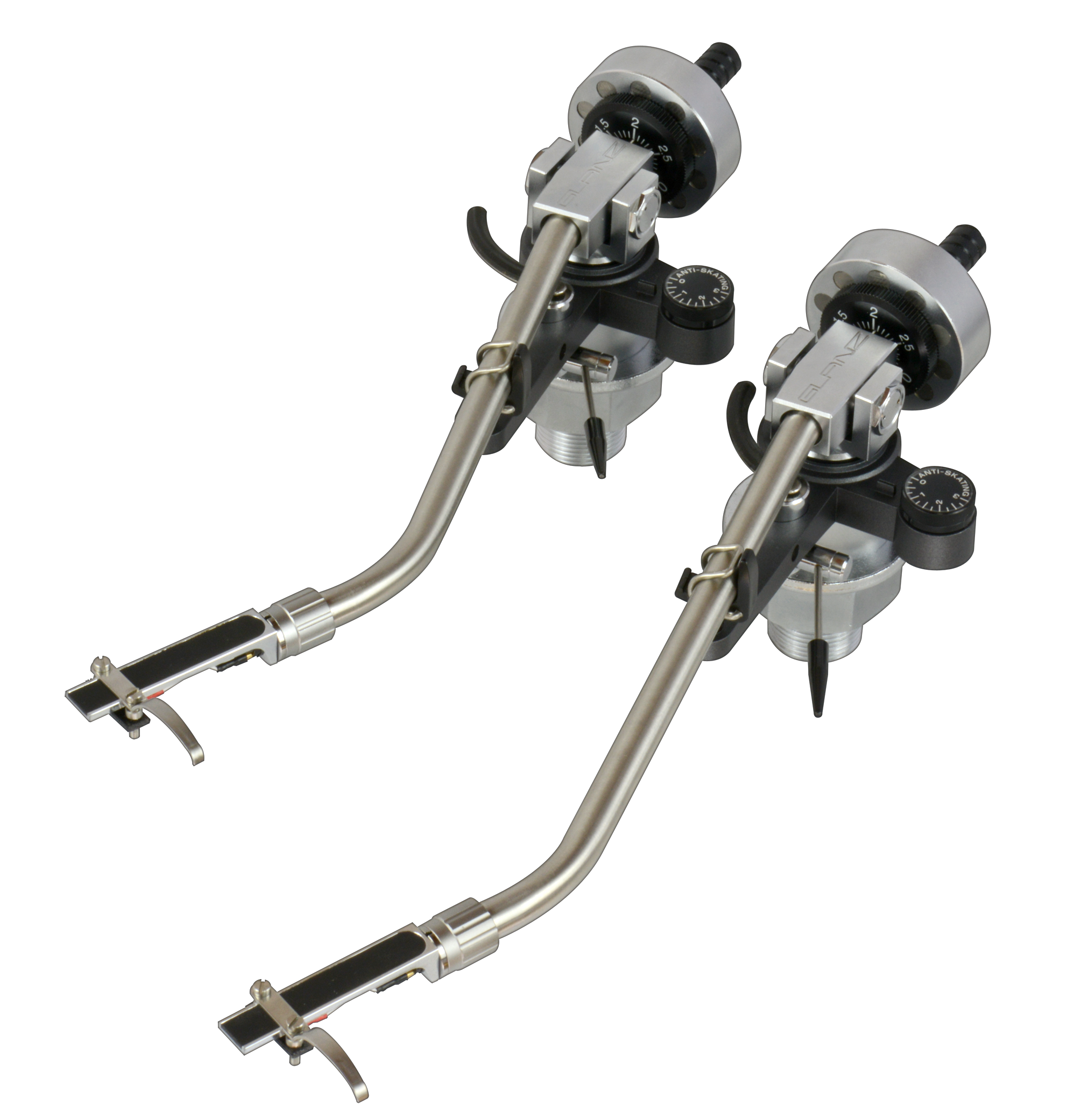

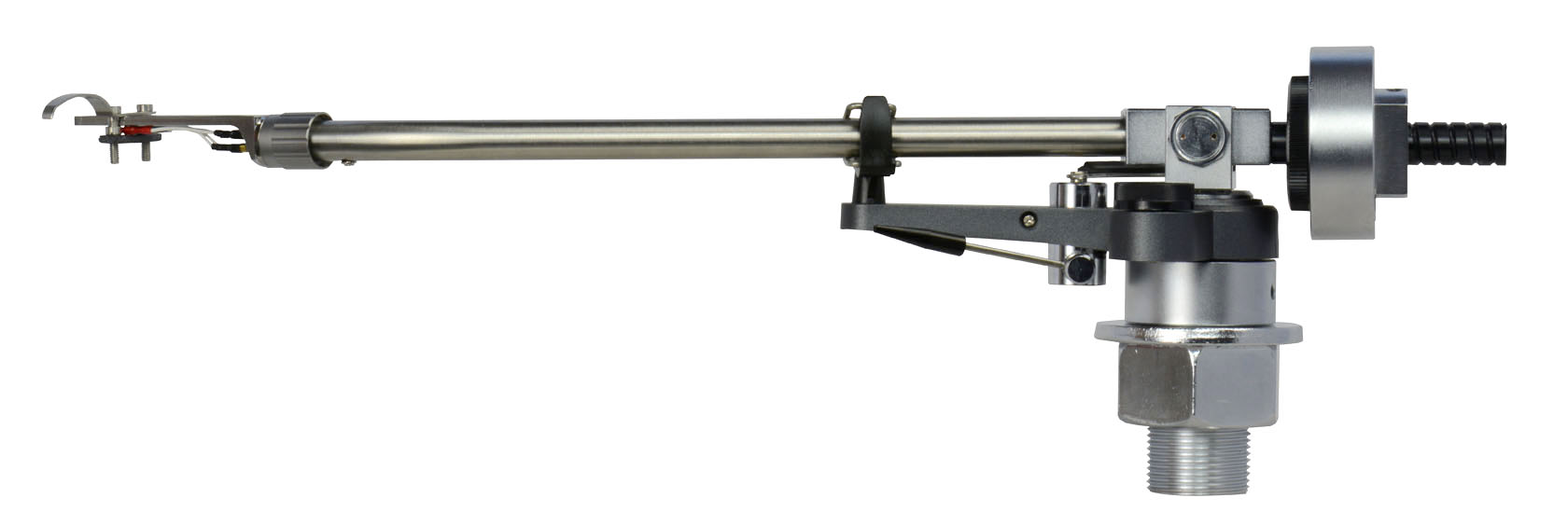

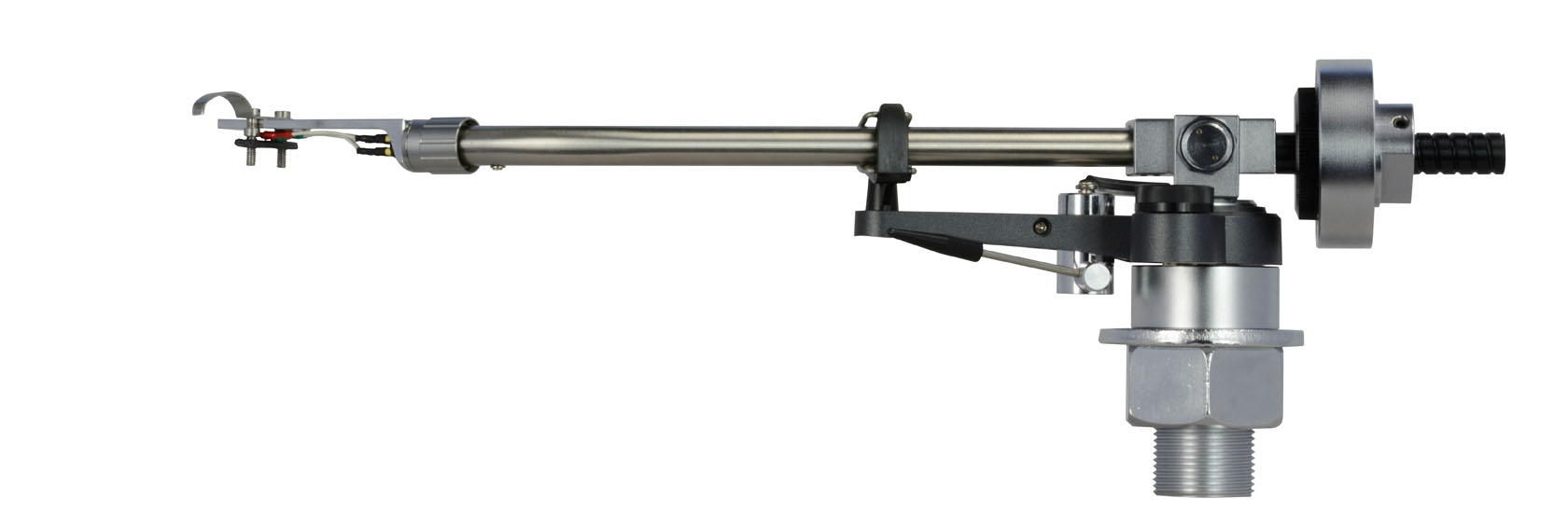

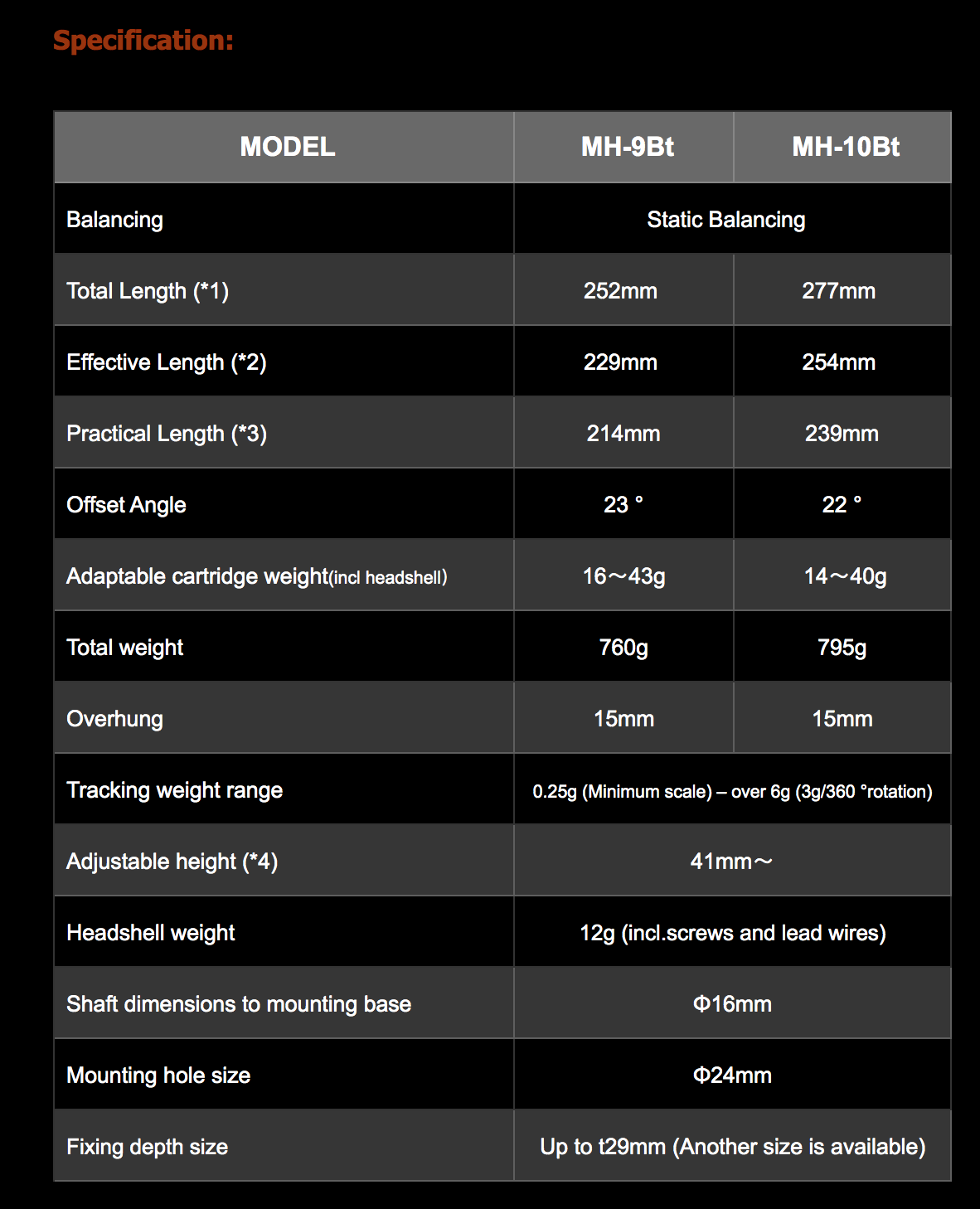

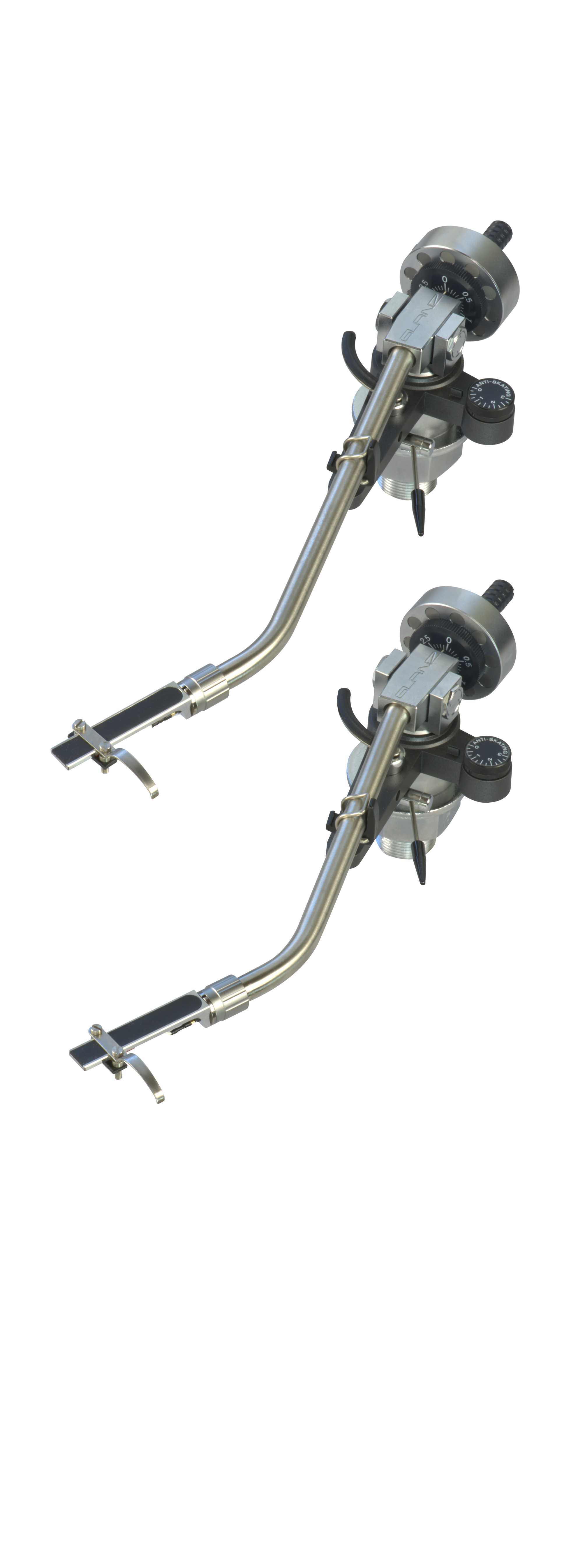

MODEL  MH-9Bt/  MH-10Bt

• Balancing

Static Balancing

• Total Length (*1)

252mm / 277mm

• Effective Length (*2)

229mm / 254mm

• Practical Length (*3)

214mm/ 239mm

• Offset Angle

23 ° / 22 °

• Adaptable cartridge weight(incl headshell）

16～43g /  14～40g

• Total weight

760g / 795g

• Overhung

15mm / 15mm

• Tracking weight range

0.25g (Minimum scale) – over 6g (3g/360 °rotation)

• Adjustable height (*4) 41mm～
• Headshell weight 12g (incl.screws and lead wires)
• Shaft dimensions to mounting base Φ16mm
• Mounting hole size Φ24mm
• Fixing depth size Up to t29mm (Another size is available)



(*1) : From counter weight shaft end headshell terminal.
(*2) : From centre of tonearm Base to stylus tip.
(*3) : From centre of tonearm Base to centre of turntable)
(*4) : From plinth surface to horizontal height of arm tube
