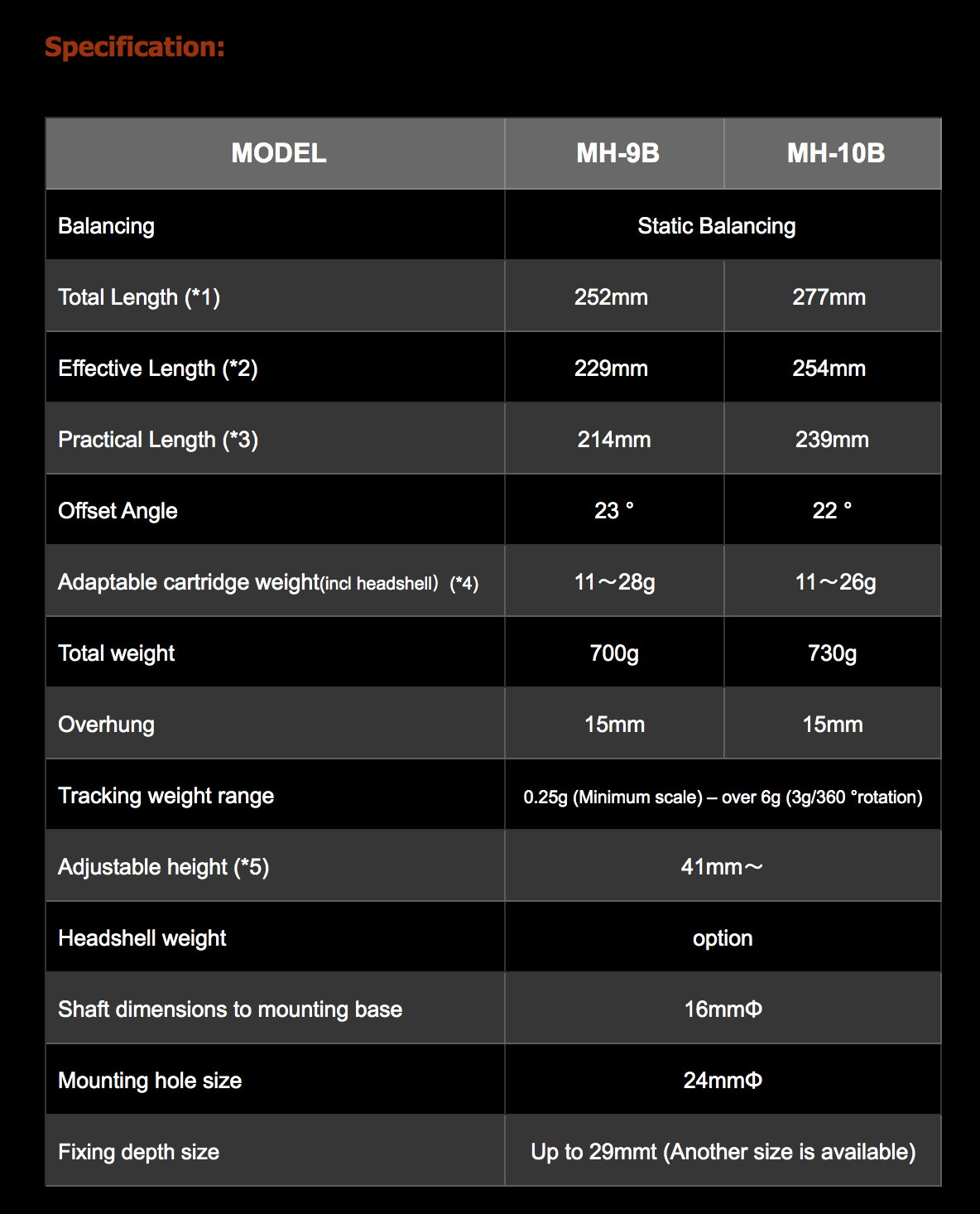

MODEL  MH-9B/  MH-10B

• Balancing

Static Balancing

• Total Length (*1)

252mm / 277mm

• Effective Length (*2)

229mm / 254mm

• Practical Length (*3)

214mm / 239mm

• Offset Angle

23 ° / 22 °

• Adaptable cartridge weight(incl headshell）(*4)

11～28g /  11～26g

• Total weight

700g / 730g

• Overhung

15mm / 15mm

• Tracking weight range

0.25g (Minimum scale) – over 6g (3g/360 °rotation)

• Adjustable height (*5) 41mm～
• Headshell weight option
• Shaft dimensions to mounting base 16mmΦ
• Mounting hole size 24mmΦ
• Fixing depth size Up to 29mmt (Another size is available)



(*1) : From counter weight shaft end headshell terminal.
(*2) : From centre of tonearm Base to stylus tip.
(*3) : From centre of tonearm Base to centre of turntable)
(*4) : When the sub weight is attached, you can use a head shell and cartridge with a combined weight up to 40g.
(*5) : From plinth surface to horizontal height of arm tube
