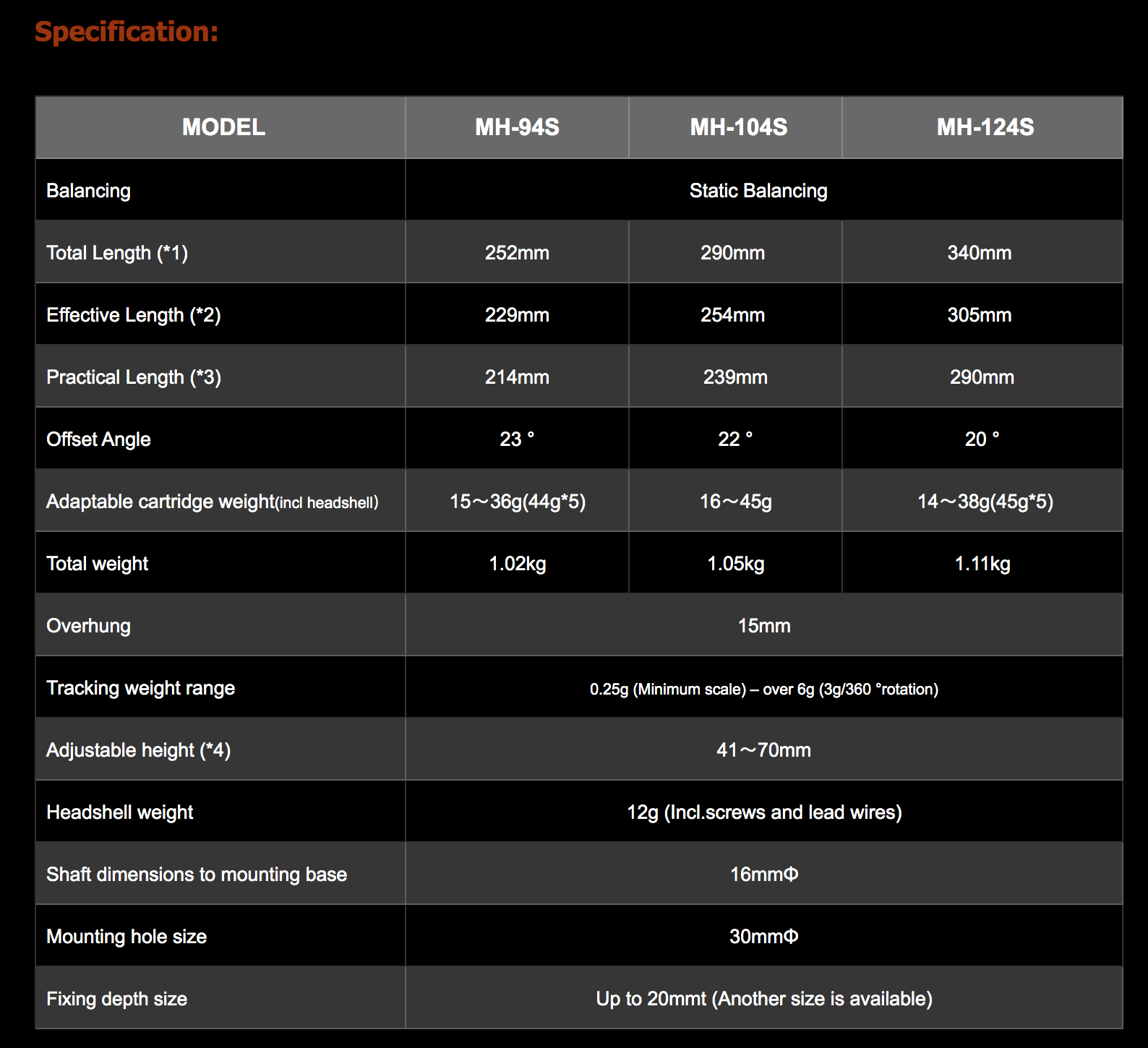

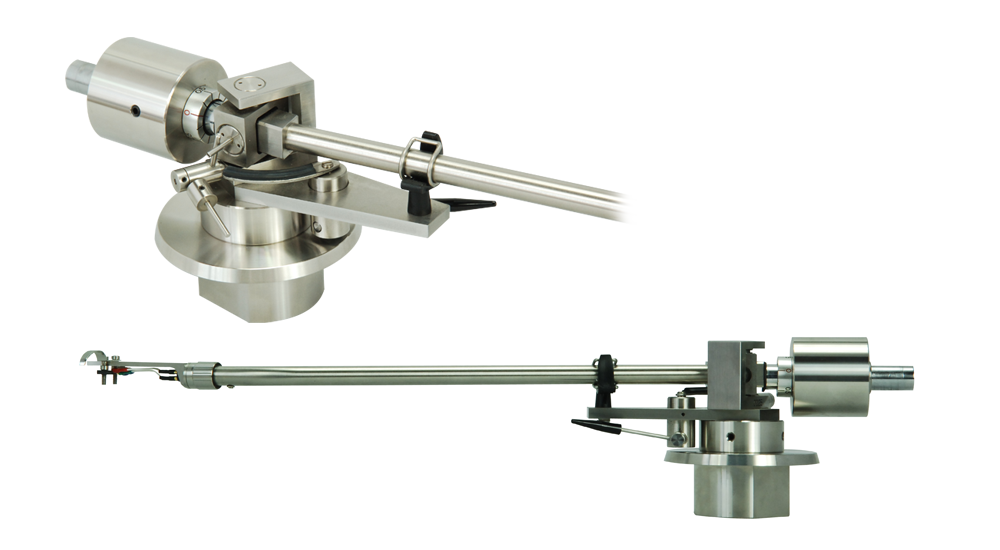

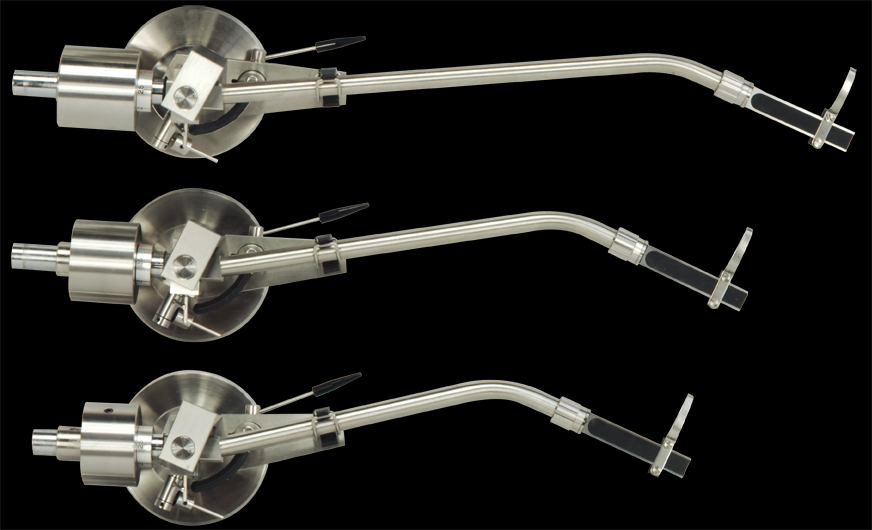

MODEL MH-94S/  MH-104S/  MH-124S

• Balancing

Static Balancing

• Total Length (*1)

252mm/ 290mm/ 340mm

• Effective Length (*2)

229mm/ 254mm/ 305mm

• Practical Length (*3)

214mm/ 239mm/ 290mm

• Offset Angle

23 °/ 22 °/ 20 °

• Adaptable cartridge weight(incl headshell）

15～36g(44g*5)/ 16～45g/  14～38g(45g*5)

• Total weight

1.02kg/ 1.05kg/ 1.11kg

• Overhung 15mm
• Tracking weight range 0.25g (Minimum scale) – over 6g (3g/360 °rotation)
• Adjustable height (*4) 41～70mm
• Headshell weight 12g (Incl.screws and lead wires)
• Shaft dimensions to mounting base 16mmΦ
• Mounting hole size 30mmΦ
• Fixing depth size Up to 20mmt (Another size is available)



(*1) : From counter weight shaft end headshell terminal.
(*2) : From centre of tonearm Base to stylus tip.
(*3) : From centre of tonearm Base to centre of turntable)
(*4) : From plinth surface to horizontal height of arm tube
(*5) : Measurement calculated after moving the weight 10mm down from the weight axis.
