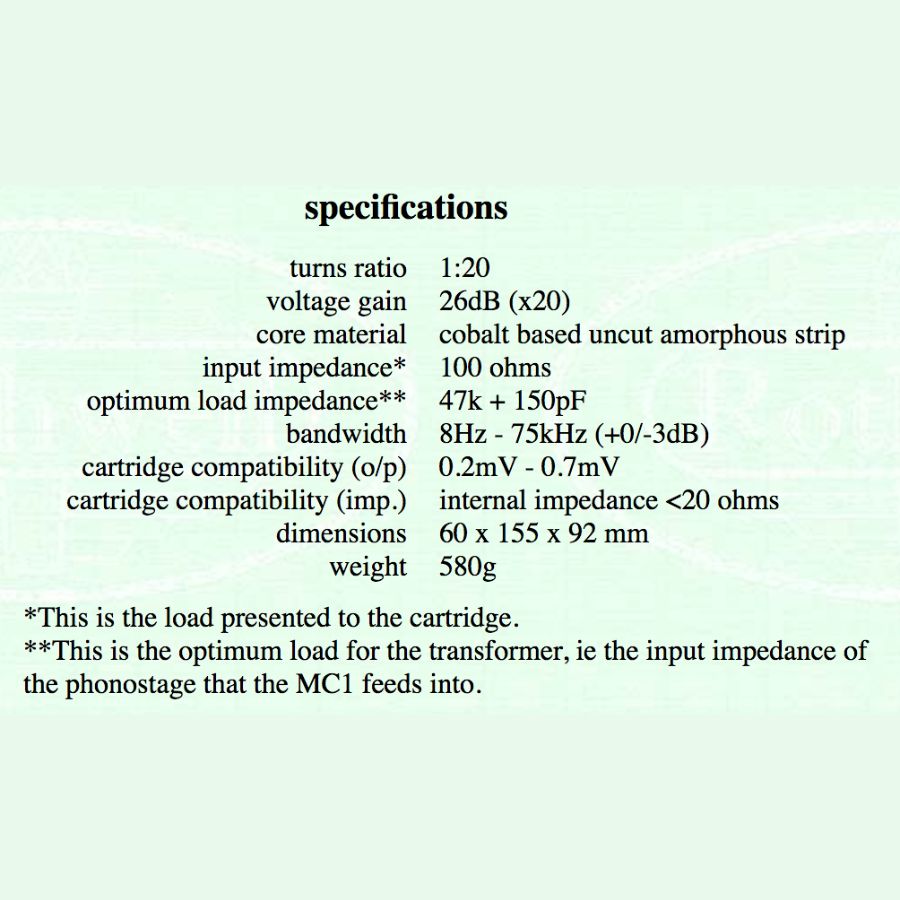

• SKU MCL
• Product Sut
• Turns Ratio 1:20
• Voltage Gain 26 dB (x 20)
• Core Material Cobalt based uncut amorphous strip
• Input Impedance * 100 Ω
• Optimum Load Impedance ** 47 k + 150 pF
• Bandwidth 8 Hz – 75 kHz (+0 / -3 dB)
• Cartridge Compatibility (o/p) 0.2 mV – 0.7 mV
• Cartridge Compatibility (imp.) Internal impedance < 20 Ω
• Dimensions 60 mm x 155 mm x 92 mm
• Weight 580 g

* This is the load presented to the cartridge.
** This is the optimum load for the transformer, is the input impedance of the phonostage that the MC1 feeds into.
