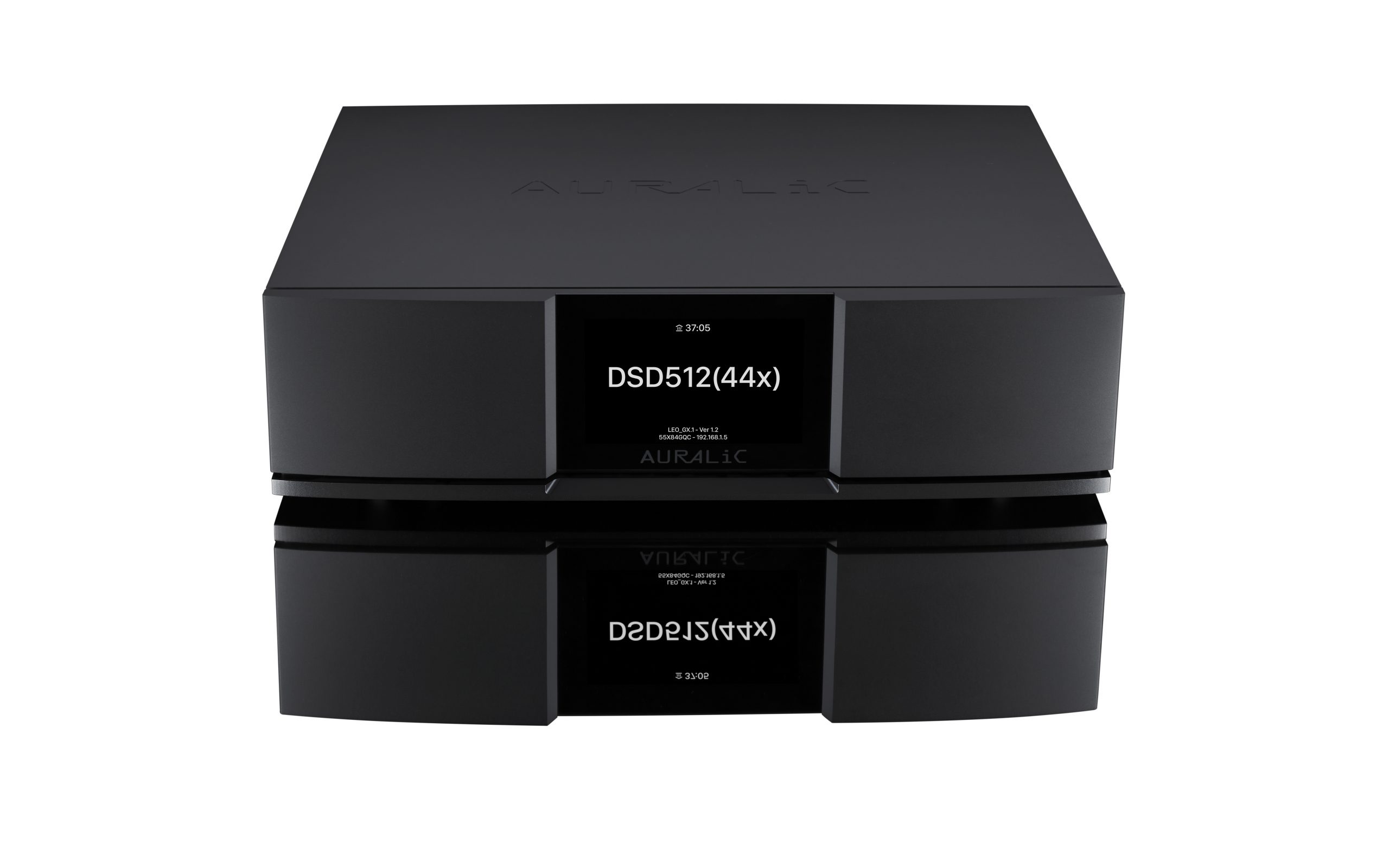

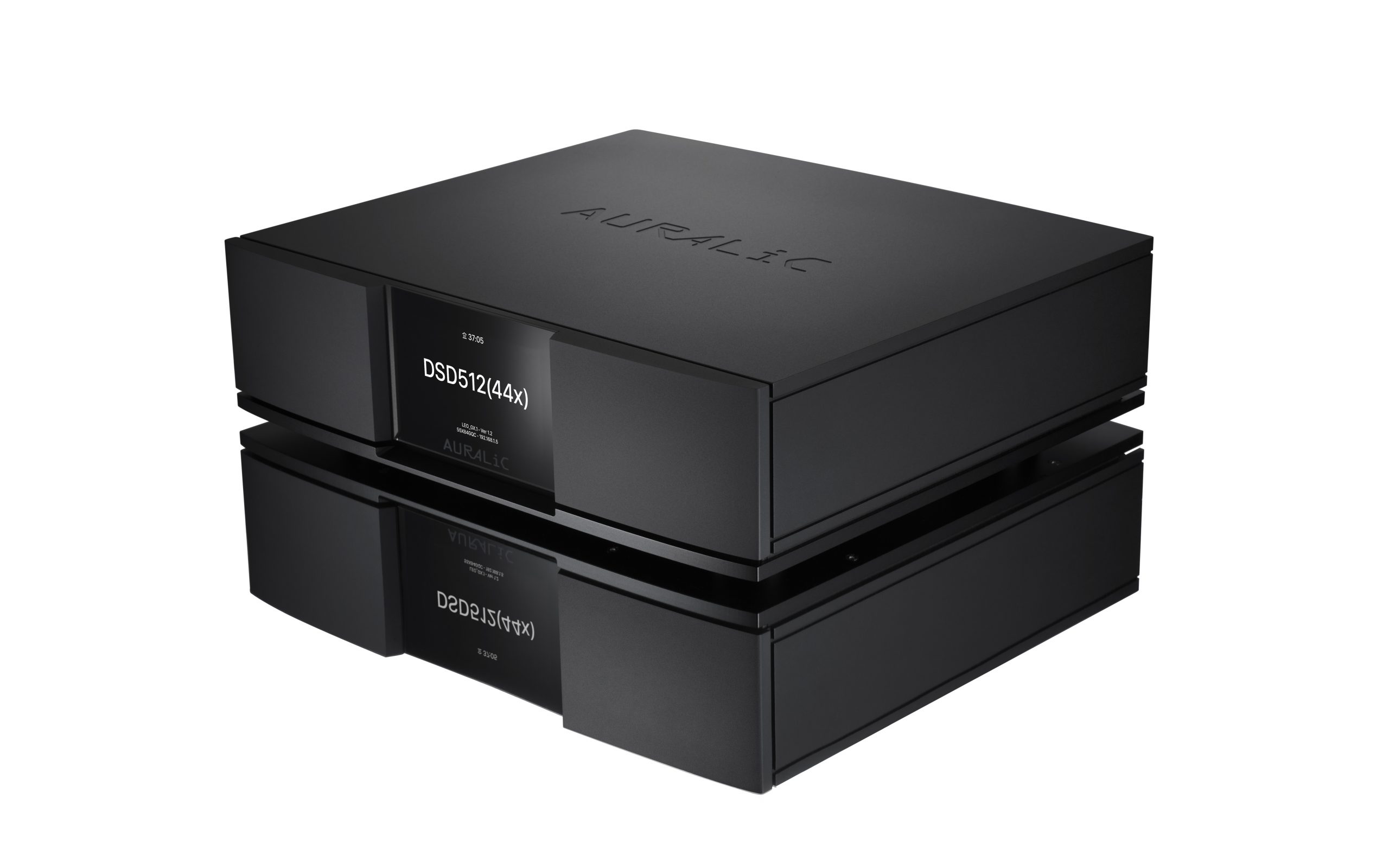

LEO GX.1

You can review the specifications in our digital catalog or write to the form in QUOTE PRODUCT

SKU LEO GX.1
Product Reference Master Clock
Allan Deviation 2E-12 (1 second)
Equivalent Jitter 500 times less than an 82fs femto clock (1Hz-10Hz)
Equivalent Phase Noise -110dBc/Hz@1Hz (Ref Frequency: 10MHz)
Frequency 90.3168MHz (44.1x fs) | 98.3040MHz (48x fs)
Output Level 3.3V CMOS (Direct-to-DAC Design)
Reference Temperature-controlled Rubidium atomic clock
Oscillator Temperature-controlled SC cut crystal
Sampling Rate PCM 44.1kHz to 384kHz in 32Bit
Sampling Rate DSD DSD64 to DSD512 in 44x and 48x
System Control Switch sampling rate automatically via Lightning-Link with G2/G2.1 DAC

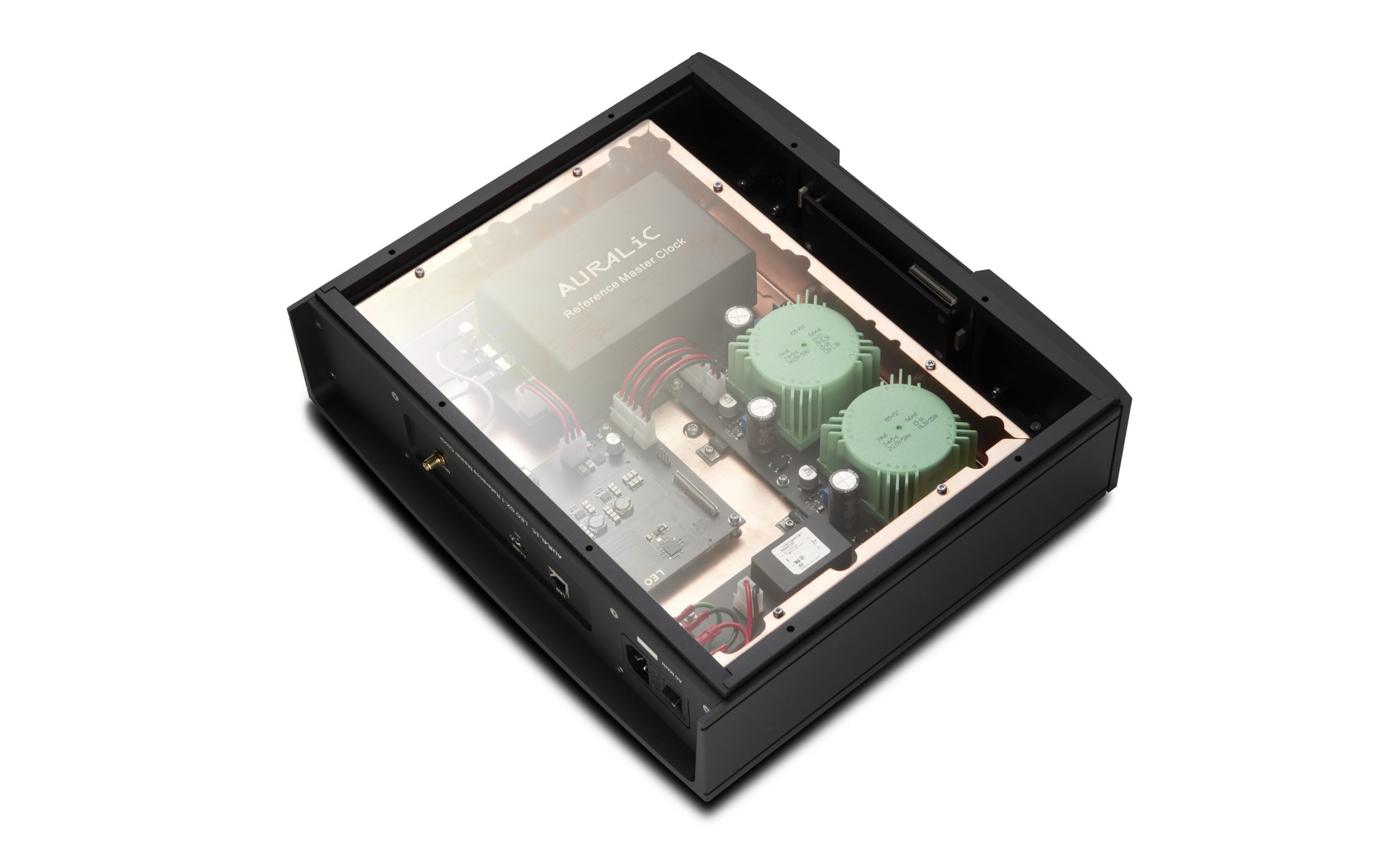

Power Supply Dual Purer-Power internal linear power supply 10uV low noise designed for audio circuits
Noise Elimination Optical isolation between control and clock circuits EMI-shielding Unity Chassis II

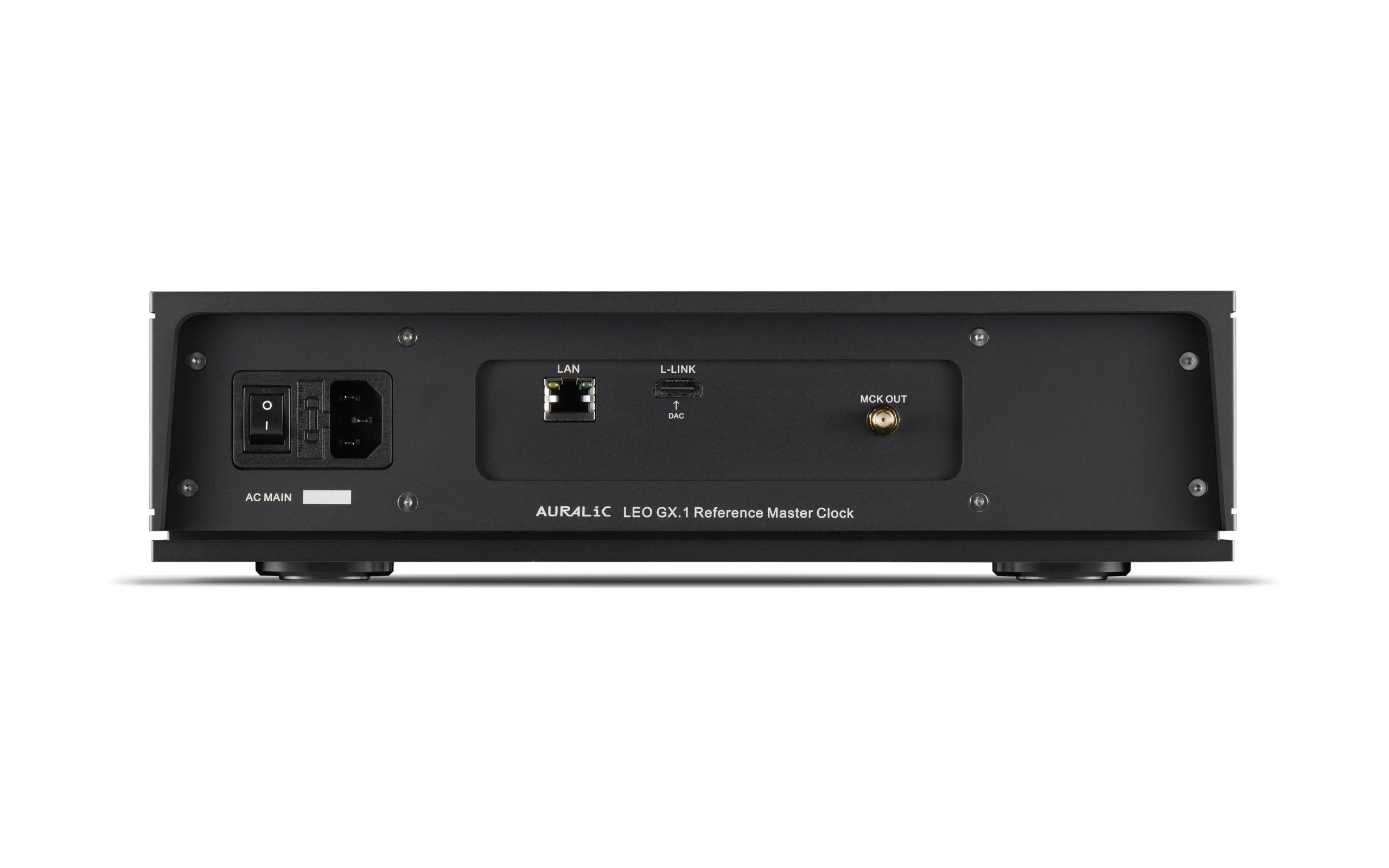

Network Gigabit Ethernet (For firmware upgrade use)
Power Consumption Warmup 30W at max
Power Consumption Running 15W
Dimensions – W x D x H 13.4 x 12.6 x 3.7 in. (34cm x 32cm x 9.6cm)
Weight 21.1 lbs (9.6kg)
Product Finishing Anodized aluminum case in matte black with copper EMI shielding enclosure
Contents AURALiC LEO GX.1 Reference Master Clock, Hex wrench (for use of tighten clock cable), User’s guide, Power cord, Lightning-Link cable, 60GHz aerospace grade clock cables
