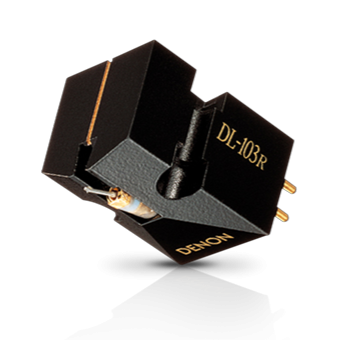

SKU DL103R
Product MC CARTRIDGES
Generating System Moving Coil (MC) type
Output Voltage 0.25 mV (1 kHz, 50 mm/sec., horizontal direction)
Channel Balance 1 dB max. (1 kHz)
Channel Separation 25 dB min. (1 kHz)
Electrical Impedance 14Ω ± 20%
Compliance 5 x 10�³ m/N (using a 100 Hz record)
Stylus 0.2 mm square solid diamond
Frequency Response 20 Hz to 45 Hz
Weight 8.5 g
Recommended Load Resistance 100Ω min. (40Ω when using a transformer)
Recommended Tracking Force 25 mN ± 3 mN (2.5 g ± 0.3 g)
